Manual Transaxle Control System - 1.6L (M6CF1)
›
Control Cable
›
Components And Components Location
›
Components
Components And Components Location: Components

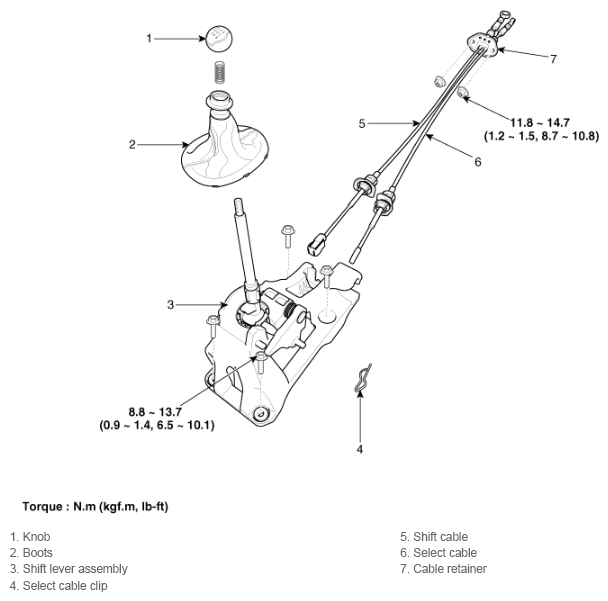

Fig 1: Control Cable Components With Torque Specification
Courtesy of KIA MOTORS AMERICA, INC.
Courtesy of KIA MOTORS AMERICA, INC.
