Diagnosis With KDS
- It can quickly diagnose defects of power window by communicating with KDS. KDS can operate actuator forcefully, monitor input/output values and self diagnose.
- Select model and "BCM".
- Select the "SJB" to check.

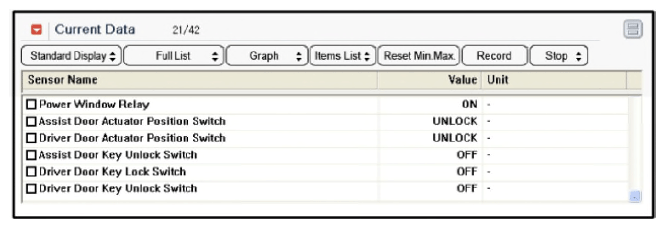

- Select "Current Data" if you wish to check the current data of power window system. This menu provides input/output status of SJB.

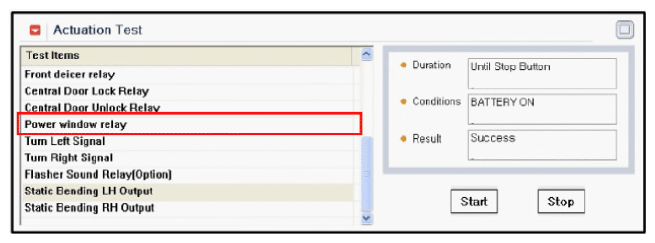

- If you wish to check the power door lock operation forcefully, select "Actuation test".
