Hub Nut Tightening Sequence: Notes

Tighten the hub nuts as follows.

Tightening torque:

88.3 ~ 107.9 N.m (9.0 ~ 11.0 kgf.m, 65.1 ~ 79.6lb-ft)

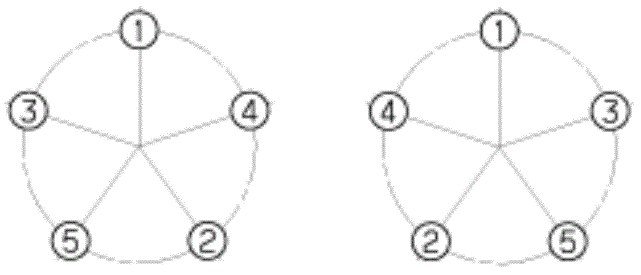

Fig 1: Wheel Hub Nuts Tightening Sequence

Courtesy of KIA MOTORS AMERICA, INC.

CAUTION: When using an impact gun, final tightening torque should be checked using a torque wrench.
