Home › Kia › 2018 › Stinger Base, AWD › Repair and Diagnosis › Accessories & Equipment › Memory Modules › Integrated Memory Seat (IMS) System › Schematic Diagrams › Components

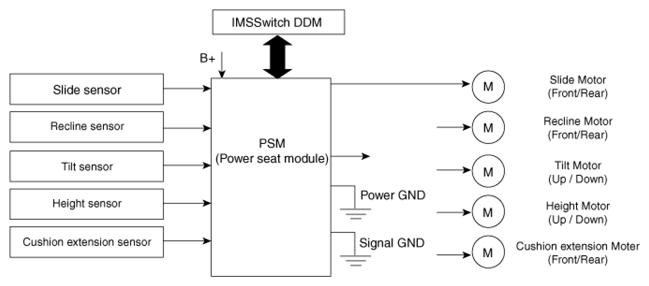

Schematic Diagrams: Components

G12793208Courtesy of KIA MOTORS AMERICA, INC.
