Repair Procedures: Removal

  1. Disconnect the negative (-) battery terminal.
  2. Remove the liftgate trim.

    (Refer to " TAIL GATE TRIM  ")

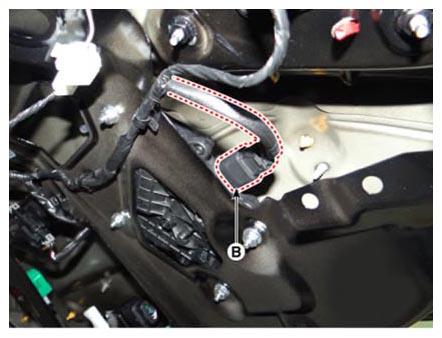

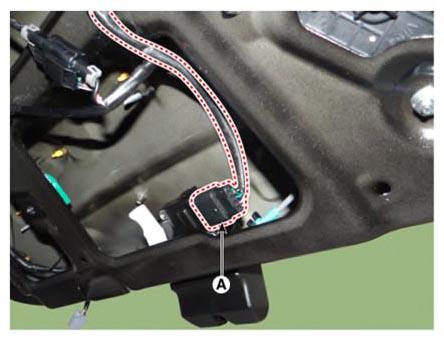

  3. Disconnect the power liftgate latch connector (A) and power closing unit connector (B).
    G12798699Courtesy of KIA MOTORS AMERICA, INC.
    G12798700Courtesy of KIA MOTORS AMERICA, INC.

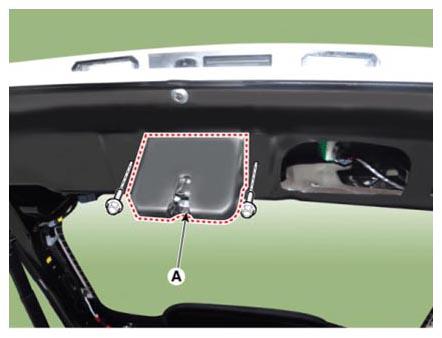

  4. Loosen the power liftgate latch (A) mounting bolts.
    G12798701Courtesy of KIA MOTORS AMERICA, INC.

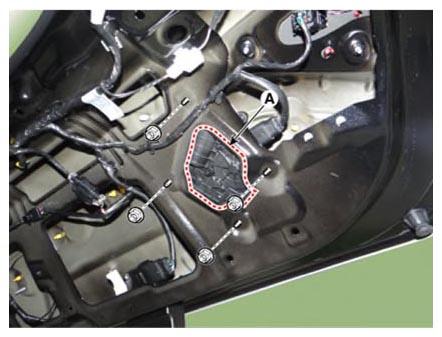

  5. Loosen the power closing unit (A) mounting nuts.
    G12798702Courtesy of KIA MOTORS AMERICA, INC.

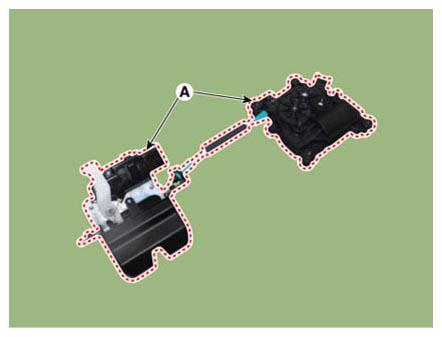

  6. Remove the power liftgate latch & power closing unit (A).
    G12798703Courtesy of KIA MOTORS AMERICA, INC.
