Liftgate Open Switch

  1. Disconnect the negative (-) battery terminal.
  2. Remove the liftgate back panel.

    (Refer to Body - " TAIL GATE BACK PANEL  ")

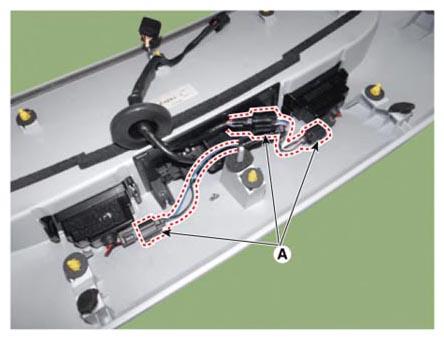

  3. Disconnect the license lamp connectors (A).
    G12798846Courtesy of KIA MOTORS AMERICA, INC.

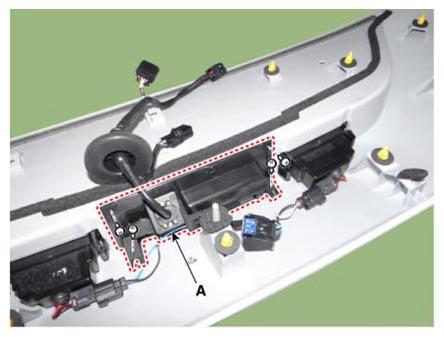

  4. Remove the liftgate outside handle assembly (A) after loosening the mounting screws.
    G12798847Courtesy of KIA MOTORS AMERICA, INC.

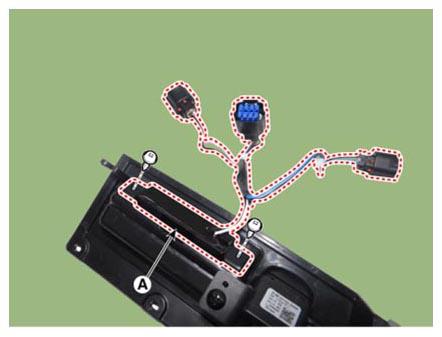

  5. Remove the liftgate open switch (A) after loosening the mounting screws.
    G12798848Courtesy of KIA MOTORS AMERICA, INC.
