Repair Procedures: Removal

  1. Disconnect the negative (-) battery terminal.
  2. Remove the crash pad passenger side panel.

    (Refer to Body - " CRASH PAD CENTER PANEL  ")

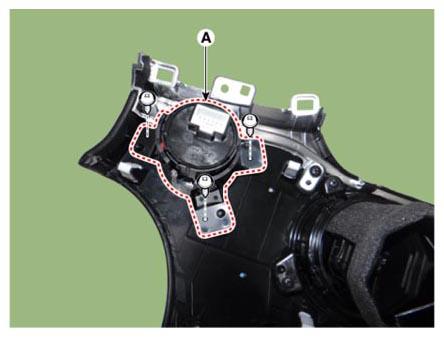

  3. Remove the start/stop button (A) after loosening the mounting screws.
G12793048Courtesy of KIA MOTORS AMERICA, INC.
