Alternator Fuse: Notes

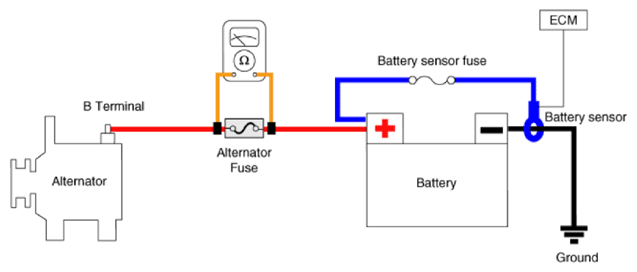

Check the alternator fuse (A) for continuity.

Courtesy of KIA MOTORS AMERICA, INC.
Measure the voltage as shown in the illustration below.
Standard value: Approximately 0 V

Courtesy of KIA MOTORS AMERICA, INC.
If the alternator fuse is blown, replace it as in the procedure below:
1. Turn ignition switch OFF and disconnect the battery negative (-) terminal.
2. Remove the battery positive (+) cable mounting nuts.
3. Replace the nominal alternator fuse or battery cable.
4. Install in the reverse order of removal.
