Repair Procedures: Removal

  1. Switch "OFF" the ignition and disconnect the negative (-) battery terminal.
  2. Remove the drive belt.

    (Refer to " DRIVE BELT  ")

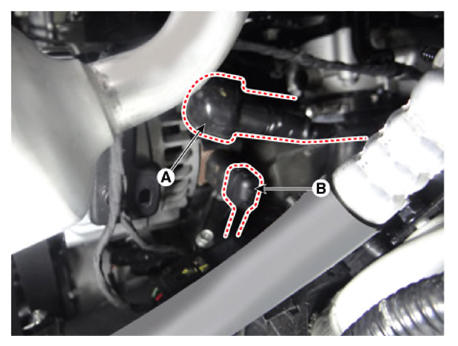

  3. Disconnect the alternator connector (B), and remove the cable (A) from alternator "B" terminal.
    G12791964Courtesy of KIA MOTORS AMERICA, INC.

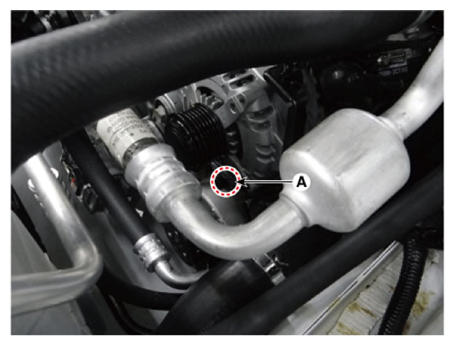

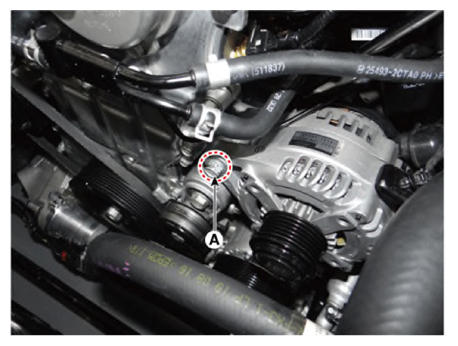

  4. Remove the alternator lower bolt and upper bolt (A).
    G12791965Courtesy of KIA MOTORS AMERICA, INC.
    G12791966Courtesy of KIA MOTORS AMERICA, INC.

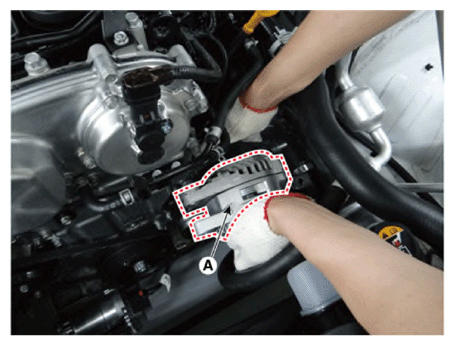

  5. Remove the alternator (A).

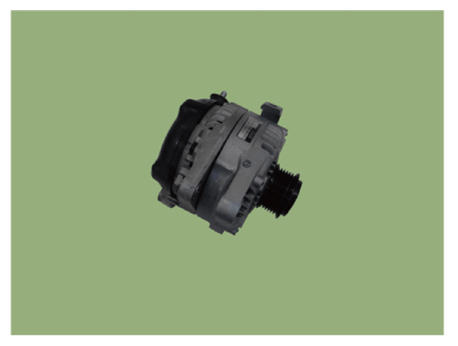

G12791967Courtesy of KIA MOTORS AMERICA, INC.
G12791968Courtesy of KIA MOTORS AMERICA, INC.
