[Bank 1/Sensor 2]

  1. Switch "OFF" the ignition and disconnect the negative (-) battery terminal.
  2. Disconnect the connector (A).

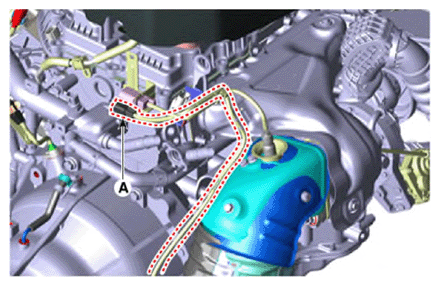

    G12792304Courtesy of KIA MOTORS AMERICA, INC.
  3. Lift the vehicle.
  4. Remove the catalytic converter bracket (A).
  5. Remove the sensor (B).

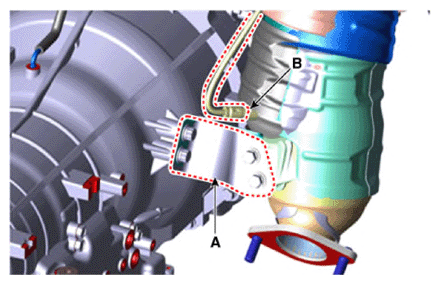

G12792305Courtesy of KIA MOTORS AMERICA, INC.
