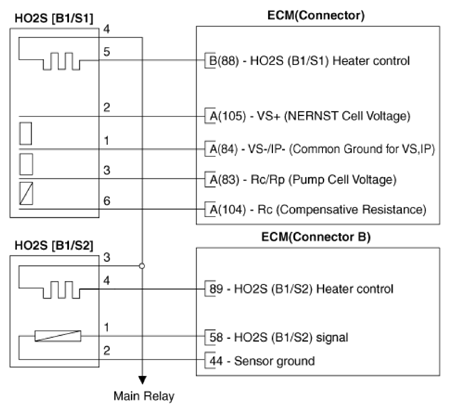

Home › Kia › 2018 › Stinger Base, AWD › Repair and Diagnosis › Engine Performance › Engine Control Systems › Engine Control System - 2.0L › Heated Oxygen Sensor (H02S) › Schematic Diagrams › Circuit Diagram › Notes
