Repair Procedures: Installation

NOTE:

• Do not reuse injector fixing clips.
• Install the component to the specified torque.
• Note that internal damage may occur when the component is dropped. In this case, use it after inspecting.
• Apply engine oil to the injector O-ring.
• Do reuse injector o-ring.
• Do not reuse bolts.
• When insert the injector, be careful not to damage the injector tip.
• Do not reuse the high pressure fuel pipe.

NOTE:

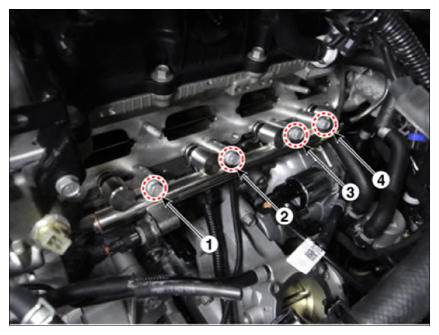

• When fastening the fuel delivery pipe mounting bolts, pretighten them by hand first, and then tighten them in the sequence ((2) → (3)→ (1)→ (4)) in several passes to the specified torque.

Courtesy of KIA MOTORS AMERICA, INC.

1. Install in the reverse order of removal.
