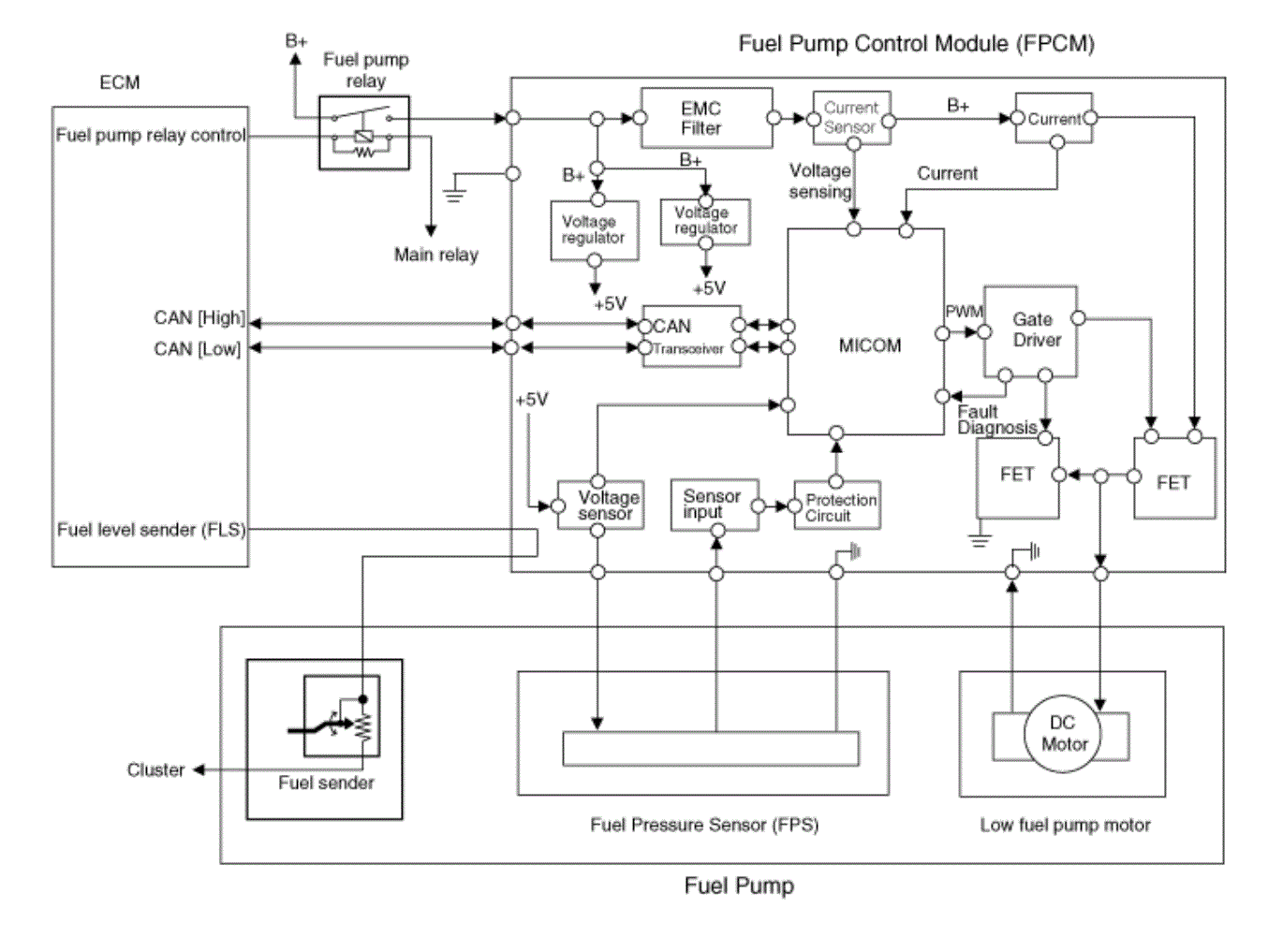

Home › Kia › 2018 › Stinger Base, AWD › Repair and Diagnosis › Engine Performance › Fuel Delivery › Fuel Delivery System - 2.0L › Fuel Pump Control Module (FPCM) › Schematic Diagrams › Circuit Diagram
