Repair Procedures: Removal

Release the residual pressure in fuel line.
(Refer to the Fuel Delivery System - " RELEASE RESIDUAL PRESSURE IN FUEL LINE ")
Switch "OFF" the ignition and disconnect the negative (-) battery terminal.
Remove the rear seat cushion.
(Refer to Body - " REAR SEAT ASSEMBLY ")

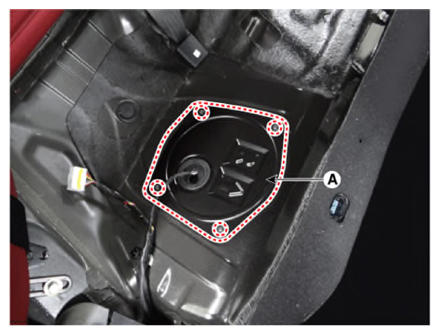

Remove the sub fuel sender service cover (A) after loosening the mounting screws.

Courtesy of KIA MOTORS AMERICA, INC.

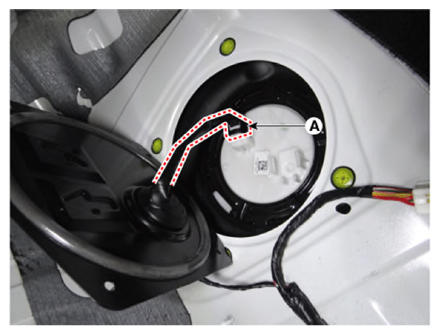

Disconnect the sub fuel sender connector (A).

Courtesy of KIA MOTORS AMERICA, INC.

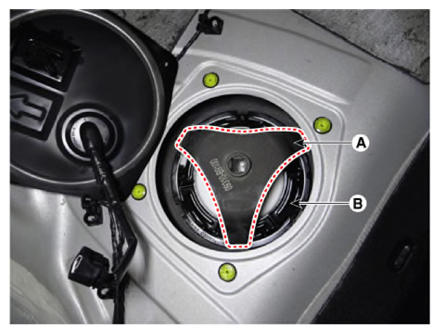

Remove the locking ring (B) by using the special service tool (A) [No.: 09310-B8100].

Courtesy of KIA MOTORS AMERICA, INC.

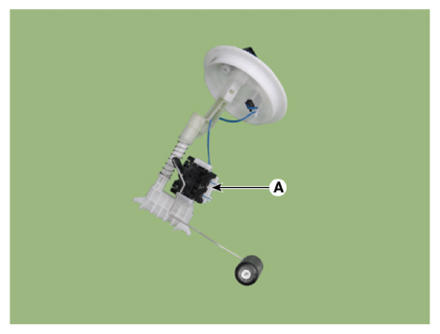

Remove the sub fuel sender (A).

Courtesy of KIA MOTORS AMERICA, INC.
