System Inspection

Inspection Condition Inspection Procedure Reference
  1. Ignition "ON".
  1. Connect KDS to Data Link Connector (DLC).
  2. Perform "Vehicle S/W Management" of concerned component with KDS.
 Figures below

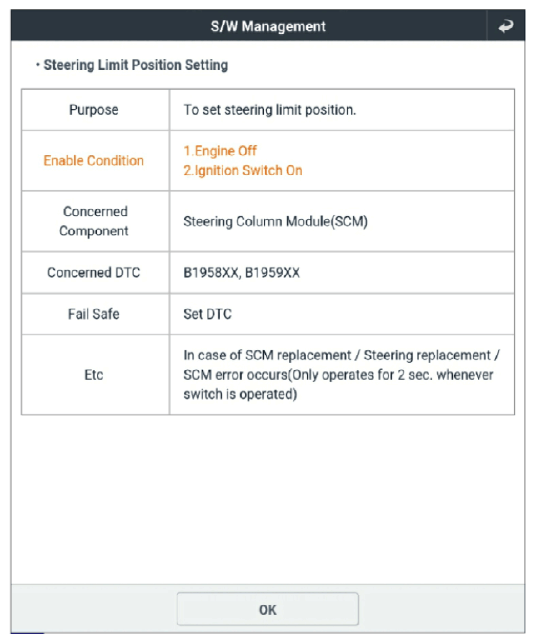

G12788950Courtesy of KIA MOTORS AMERICA, INC.

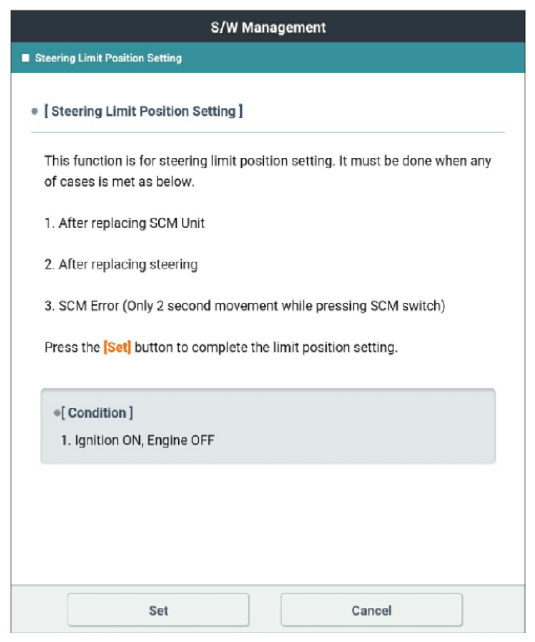

G12788951Courtesy of KIA MOTORS AMERICA, INC.
G12788952Courtesy of KIA MOTORS AMERICA, INC.

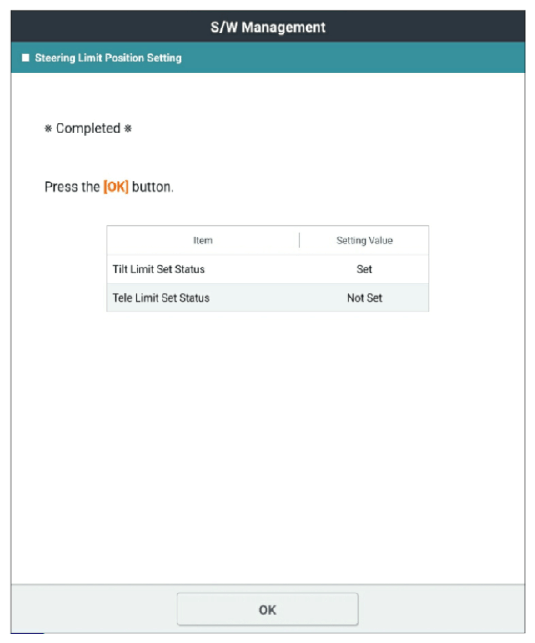

G12788953Courtesy of KIA MOTORS AMERICA, INC.

Good

No Good
