Vehicle S/W Management

Inspection Condition Inspection Procedure Reference
  1. Ignition "ON".
  1. Ignition switch "OFF"
  2. Connect KDS to Data Link Connector (DLC).
  3. Select the "Vehicle S/W Management" about related DTC with KDS.
  4. Perform "Oil-pressure Characteristics Back UP & Input (TCU Replacement)" and go to "VERIFICATION OF REPAIR " procedure.
 Figures below

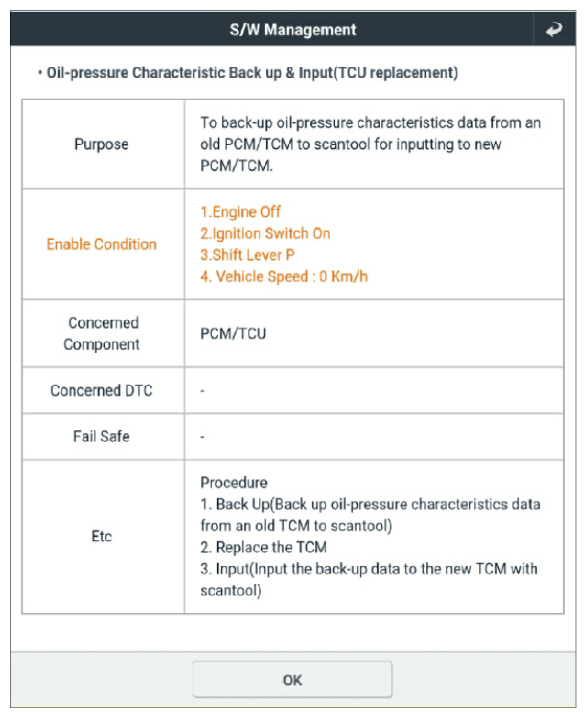

G12785982Courtesy of KIA MOTORS AMERICA, INC.

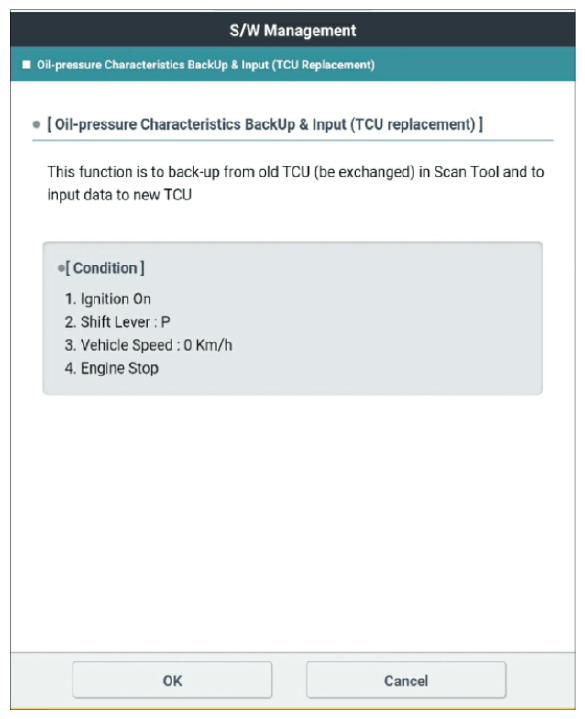

G12785983Courtesy of KIA MOTORS AMERICA, INC.

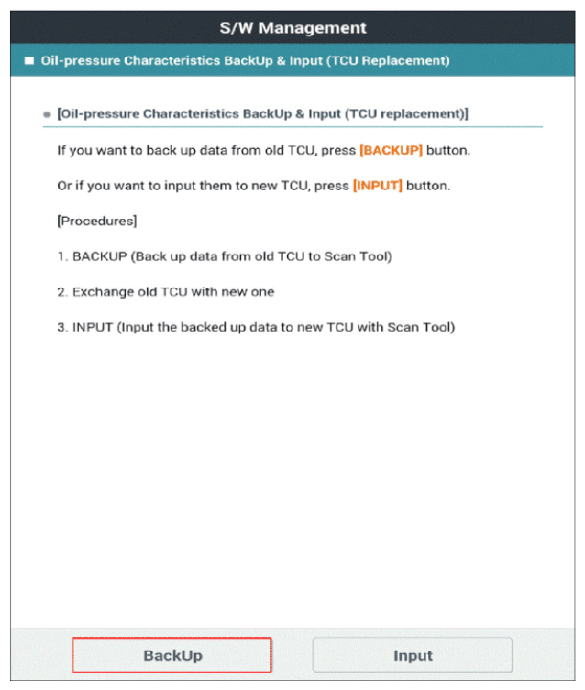

G12785984Courtesy of KIA MOTORS AMERICA, INC.

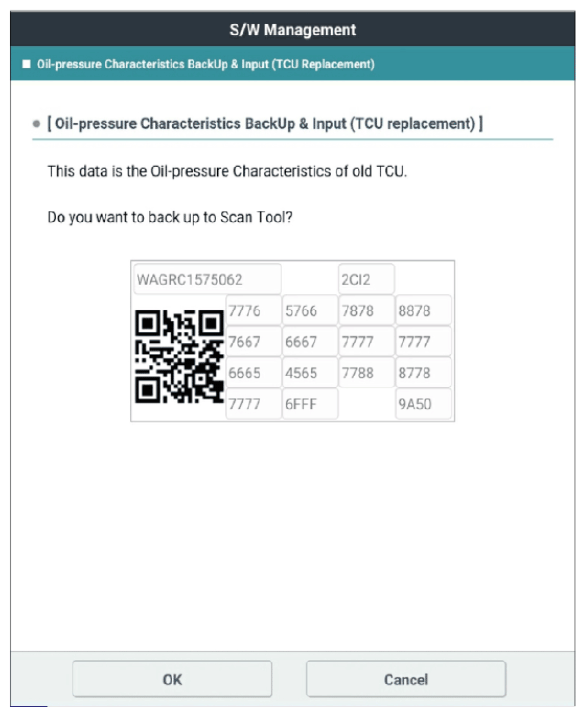

G12785985Courtesy of KIA MOTORS AMERICA, INC.

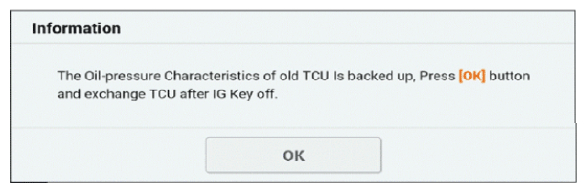

G12785986Courtesy of KIA MOTORS AMERICA, INC.

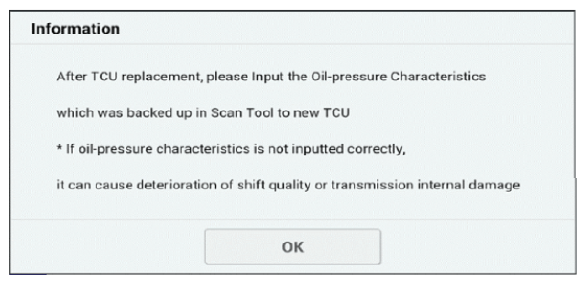

G12785987Courtesy of KIA MOTORS AMERICA, INC.

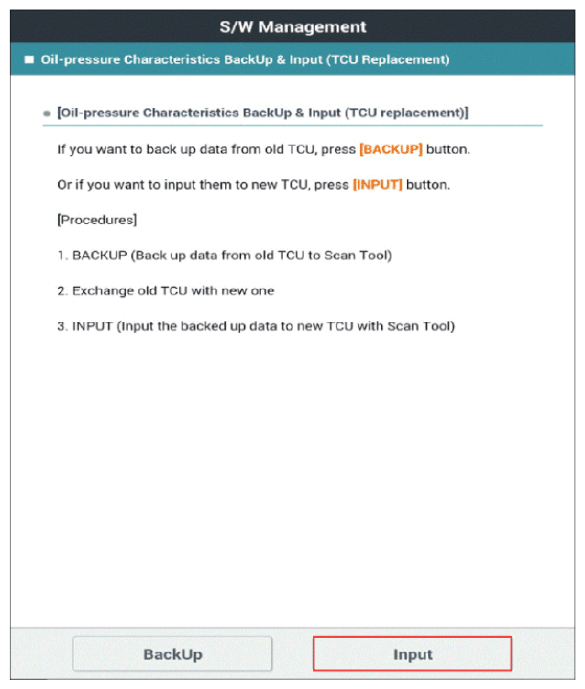

G12785988Courtesy of KIA MOTORS AMERICA, INC.

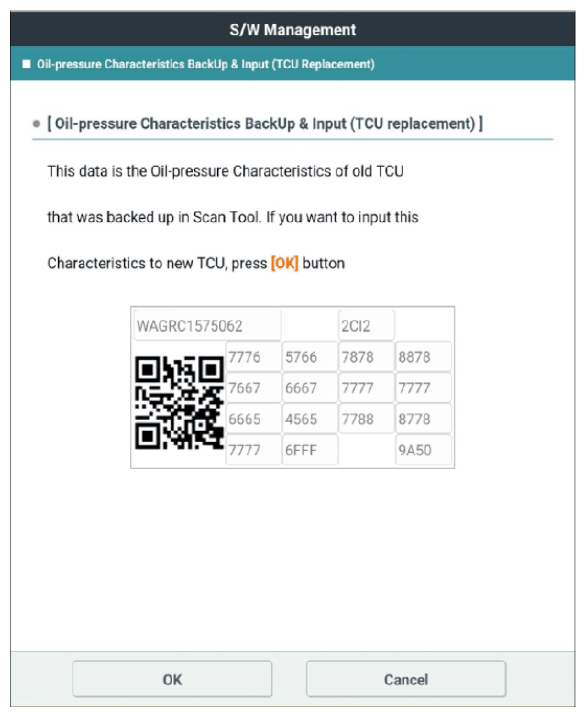

G12785989Courtesy of KIA MOTORS AMERICA, INC.
