Automatic Transmission Control System - 2.0L
›
Inhibitor Switch
›
Components & Components Location
›
Components Location
Components Location

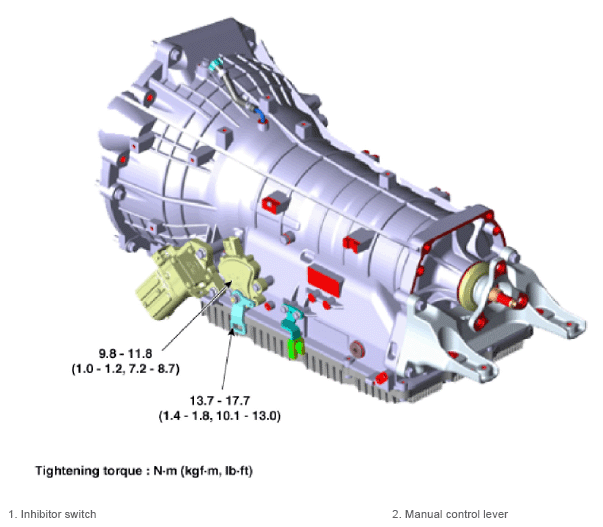

Fig 1: Inhibitor Switch Components Location With Torque Specification
Courtesy of KIA MOTORS AMERICA, INC.
Courtesy of KIA MOTORS AMERICA, INC.
