Repair Procedures: Removal

  1. Turn the ignition switch OFF.

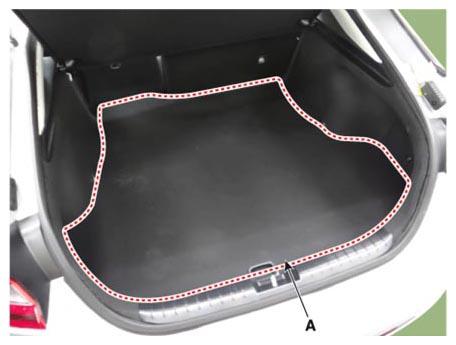

  2. Remove the luggage covering (A).
    G12803291Courtesy of KIA MOTORS AMERICA, INC.

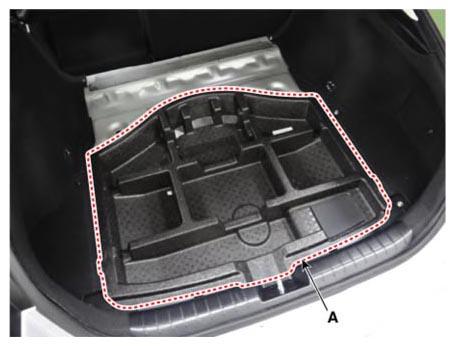

  3. Remove the luggage center tray (A).
    G12803292Courtesy of KIA MOTORS AMERICA, INC.

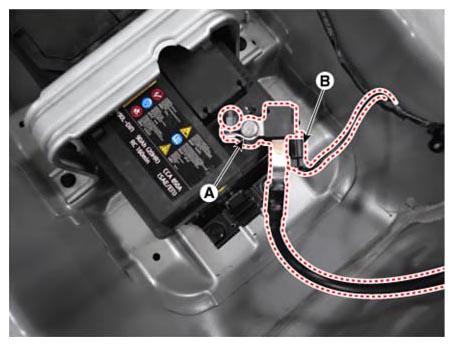

  4. Disconnect the battery negative (-) terminal (A).
  5. Disconnect the battery sensor connector (B).
    G12803293Courtesy of KIA MOTORS AMERICA, INC.

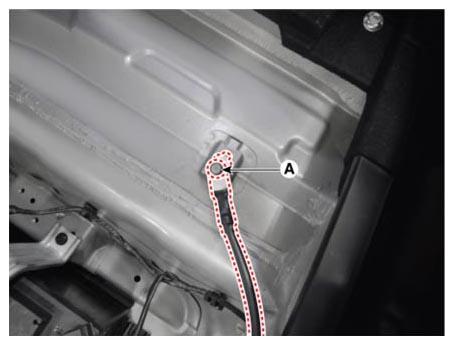

  6. Remove the battery sensor by loosening the mounting bolts (A).

    Battery Sensor Cable mounting bolt:

    27.0 - 33.0 N.m (2.7 - 3.4 kgf.m, 19.9 - 24.3 lb.ft)

    G12803294Courtesy of KIA MOTORS AMERICA, INC.
