[Bank 2/Sensor 1]

  1. Switch "OFF" the ignition and disconnect the negative (-) battery terminal.

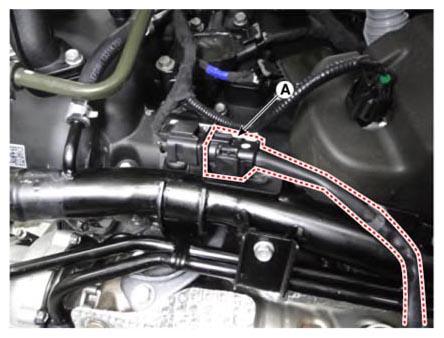

  2. Disconnect the connector (A).
    G12803512Courtesy of KIA MOTORS AMERICA, INC.

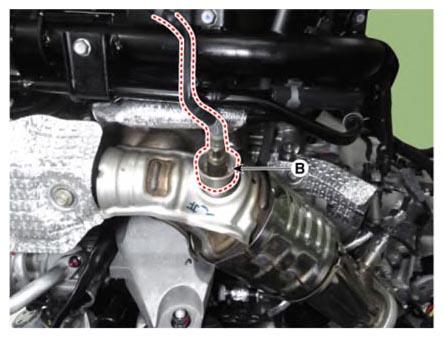

  3. Remove the sensor (B).
    G12803513Courtesy of KIA MOTORS AMERICA, INC.
