Camshaft Position Sensor (CMPS)
›
Repair Procedures
›
Removal
›
[Bank 2/Intake]
[Bank 2/Intake]
Turn ignition switch OFF and disconnect the battery negative (-) terminal.
Camshaft Position Sensor mounting bolt
:
7.8 - 8.8 N.m (0.8 - 0.9 kgf.m, 5.8 - 6.5 lb.ft)

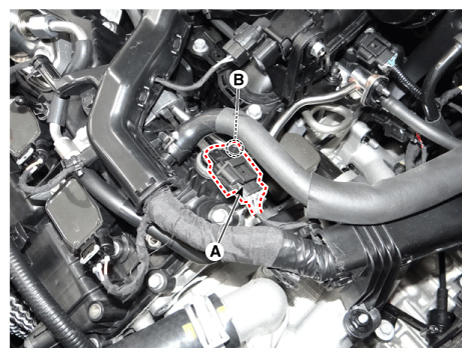

Fig 1: Locating Camshaft Position Sensor Mounting Bolt
Courtesy of KIA MOTORS AMERICA, INC.
