Engine Control System Diagnosis (2 Of 6)
›
DTC P0153-00: O2 Sensor Circuit Slow Response (Bank 2/Sensor 1)
›
Specification
›
Signal Waveform & Data
Signal Waveform & Data

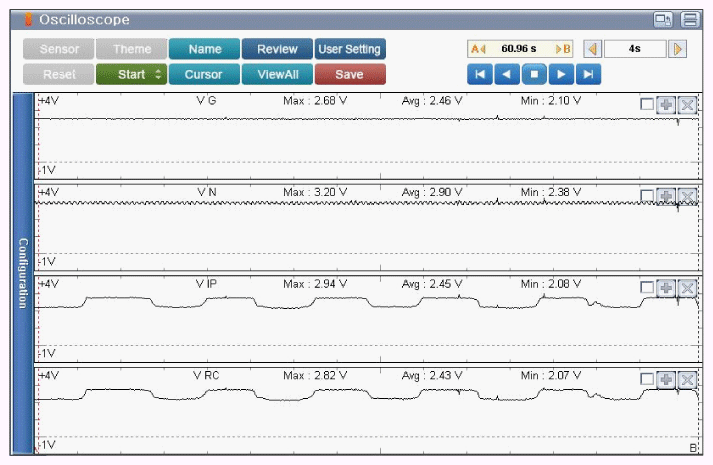

Fig 1: Screen Display - Signal Waveform Of HO2S (B2/S1) At Normal Condition
Courtesy of KIA MOTORS AMERICA, INC.
