Engine Control System Diagnosis (3 Of 6)
›
DTC P0221-00: Throttle Position Sensor 2 Signal Circuit Range/Performance
›
Specification
›
Signal Waveform & Data
Signal Waveform & Data

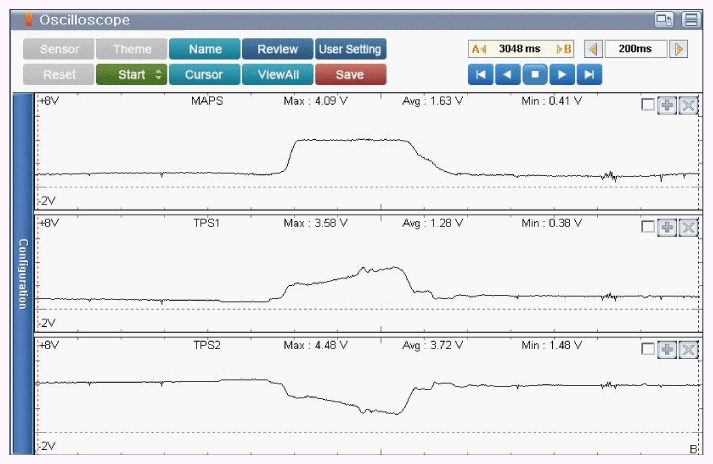

Fig 1: Scantool Display - Normal TPS Signal Waveform At Idle To Acceleration (W.O.T)
Courtesy of KIA MOTORS AMERICA, INC.
Courtesy of KIA MOTORS AMERICA, INC.
