Variant Coding: Notes

  1. Switch "OFF" the ignition.
  2. Connect the KDS to Data Link Connector (DLC).
  3. Switch "ON" the ignition.
  4. Select "Vehicle, Model year, Engine, System".
  5. Select "Vehicle S/W Management".
  6. Perform variant coding.

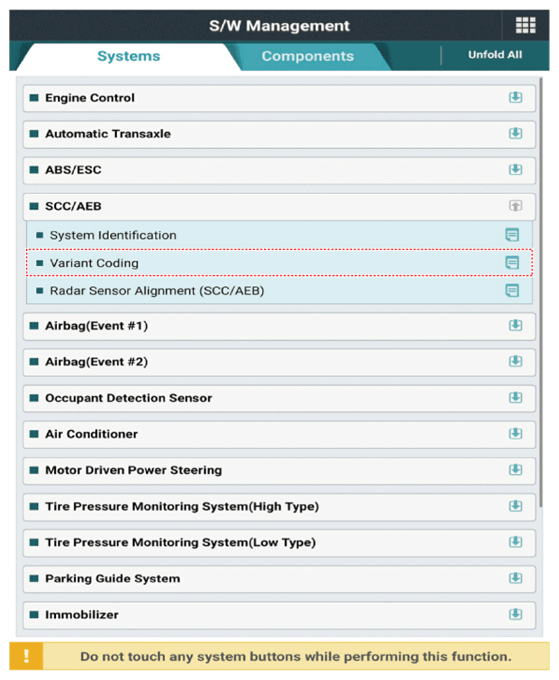

G12831982Courtesy of KIA MOTORS AMERICA, INC.

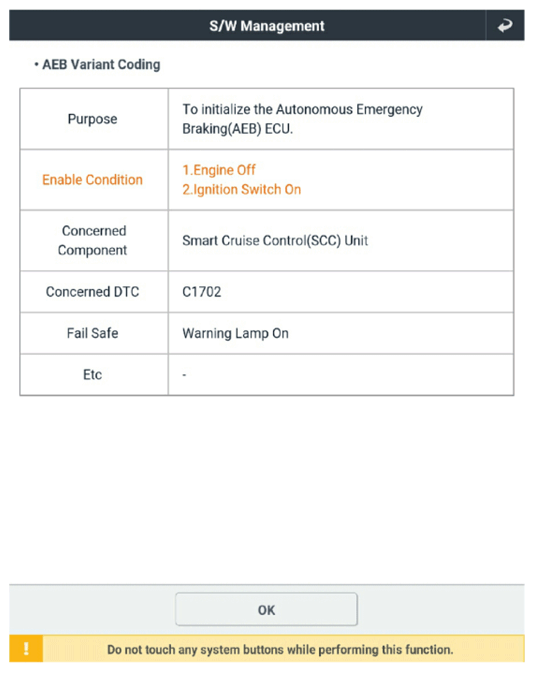

G12831983Courtesy of KIA MOTORS AMERICA, INC.

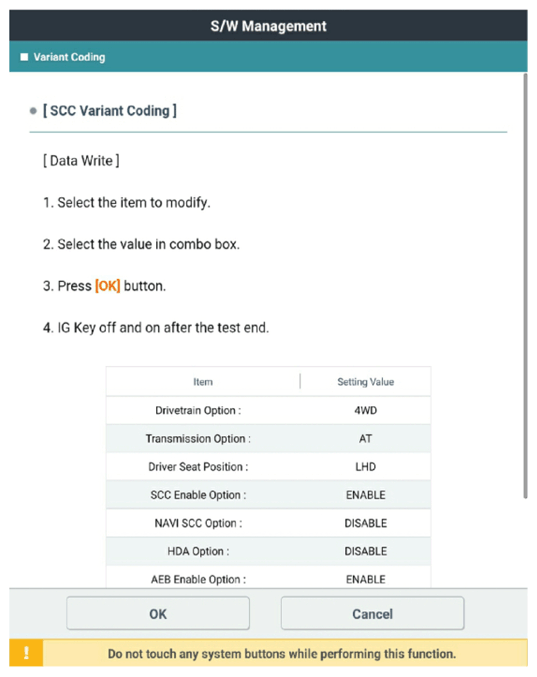

G12831984Courtesy of KIA MOTORS AMERICA, INC.
