Vehicle S/W Management

Inspection Condition Inspection Procedure Reference
  1. Ignition "ON".
  1. Connect KDS to Data Link Connector (DLC).
  2. Perform "Vehicle S/W Management" of concerned component with KDS.
 Figures below.
G12852956Courtesy of KIA MOTORS AMERICA, INC.

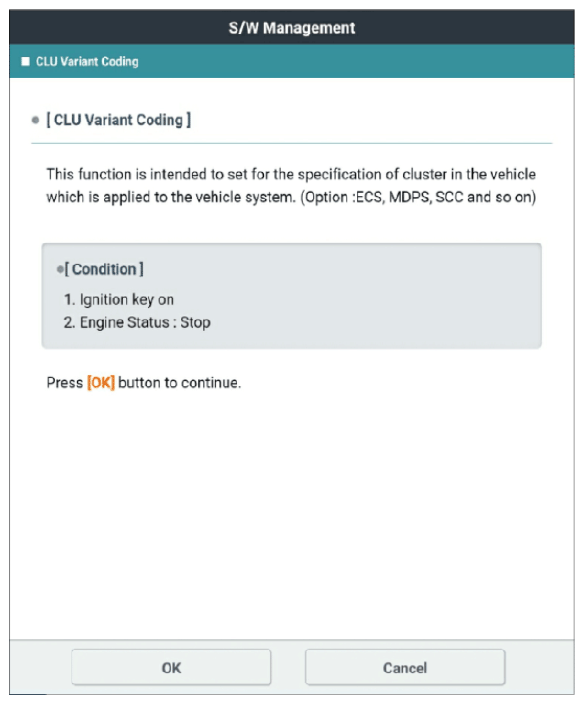

G12852957Courtesy of KIA MOTORS AMERICA, INC.

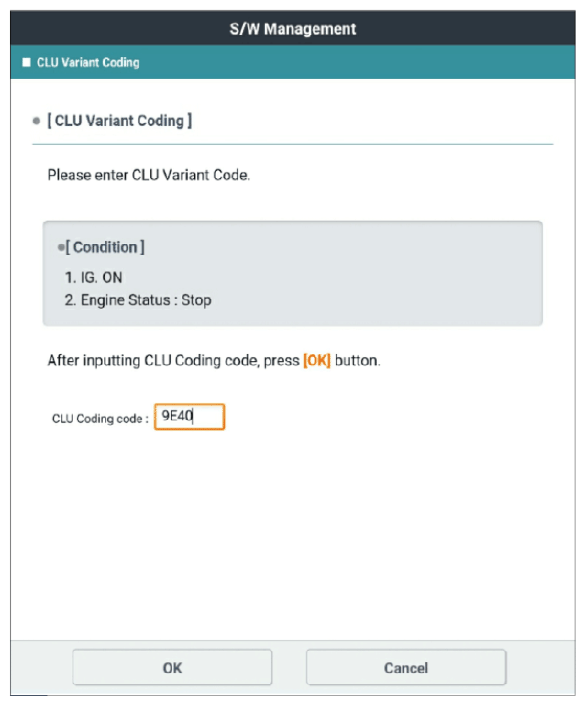

G12852958Courtesy of KIA MOTORS AMERICA, INC.
G12852959Courtesy of KIA MOTORS AMERICA, INC.

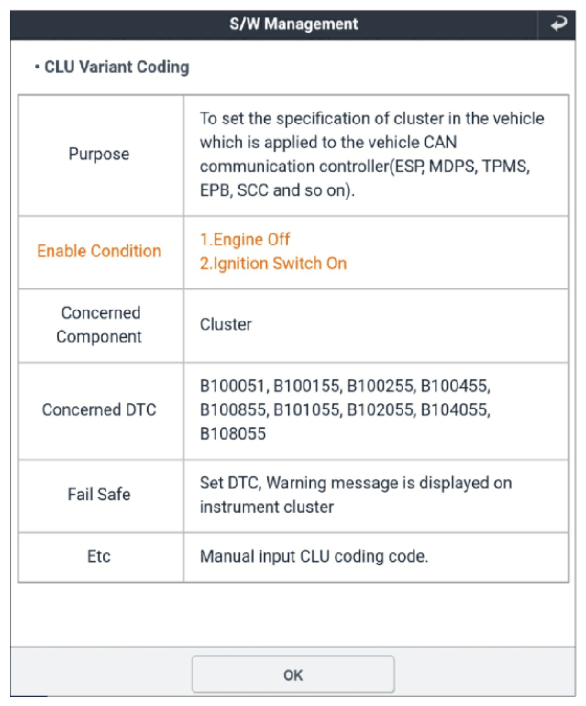

G12852960Courtesy of KIA MOTORS AMERICA, INC.

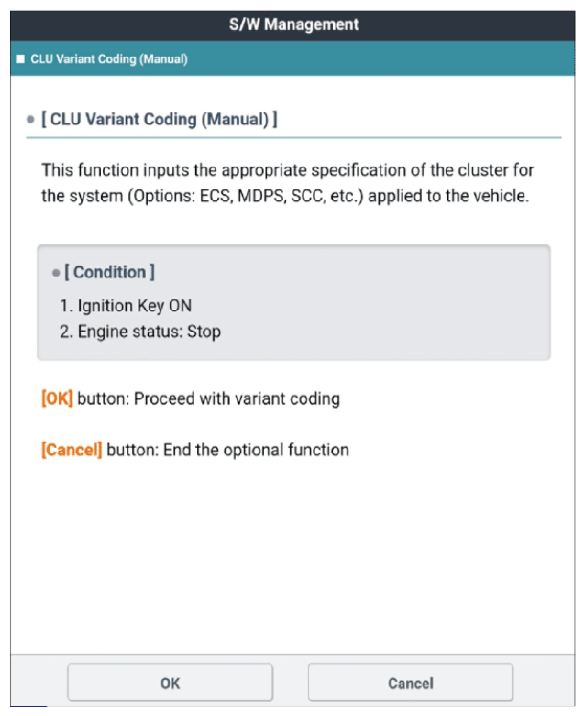

G12852961Courtesy of KIA MOTORS AMERICA, INC.

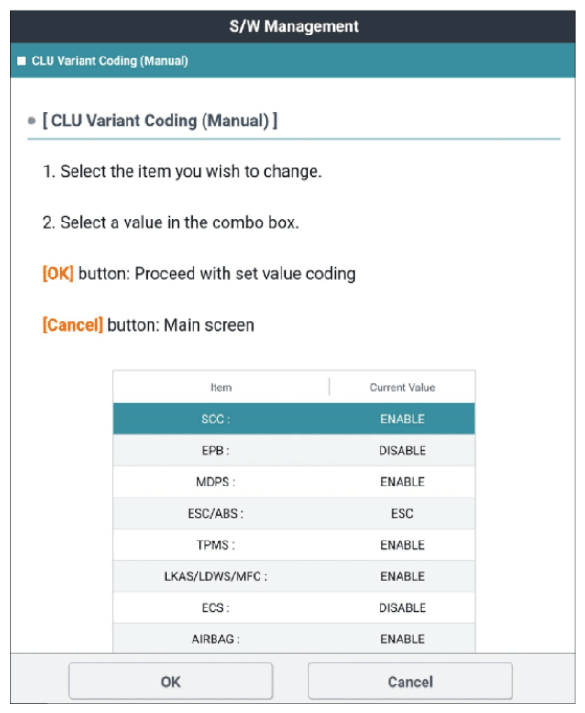

G12852962Courtesy of KIA MOTORS AMERICA, INC.

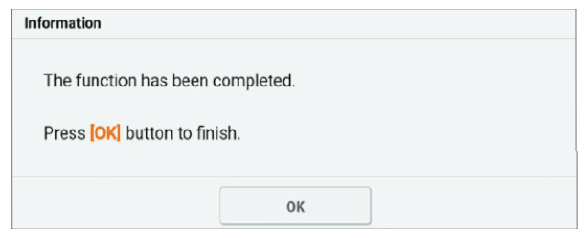

G12852963Courtesy of KIA MOTORS AMERICA, INC.
