Vehicle S/W Management

Inspection Condition Inspection Procedure Reference
  1. Ignition "ON".
  1. Connect KDS to Data Link Connector (DLC).
  2. Perform "Vehicle S/W Management" of concerned component with KDS.
 Figures below.
G12852976Courtesy of KIA MOTORS AMERICA, INC.

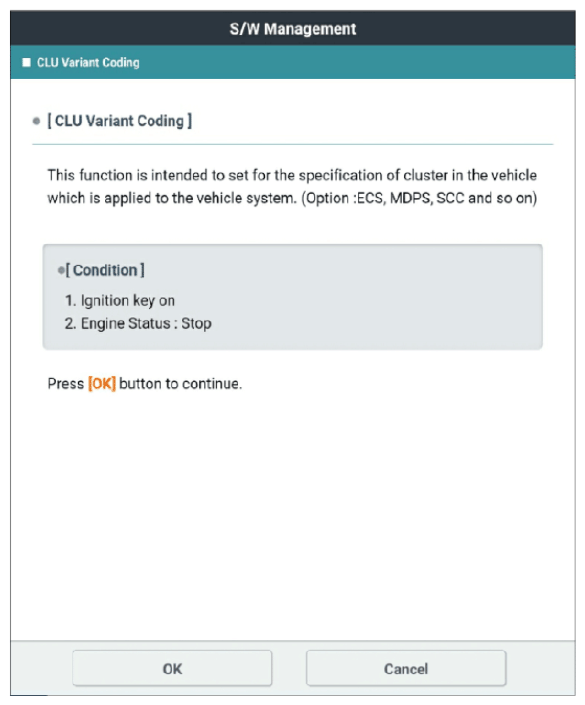

G12852977Courtesy of KIA MOTORS AMERICA, INC.

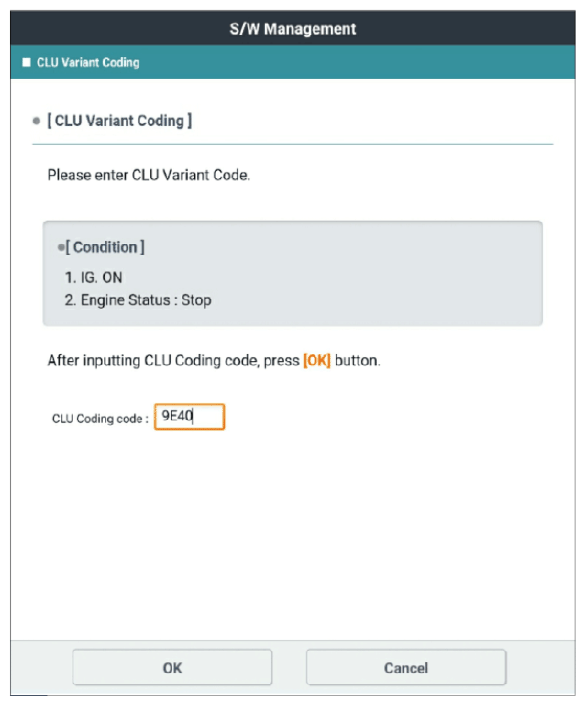

G12852978Courtesy of KIA MOTORS AMERICA, INC.

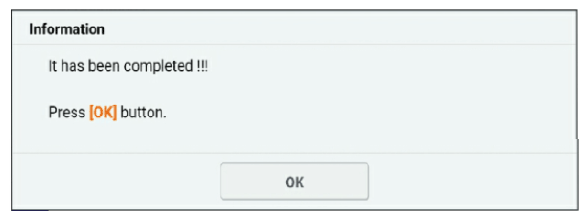

G12852979Courtesy of KIA MOTORS AMERICA, INC.

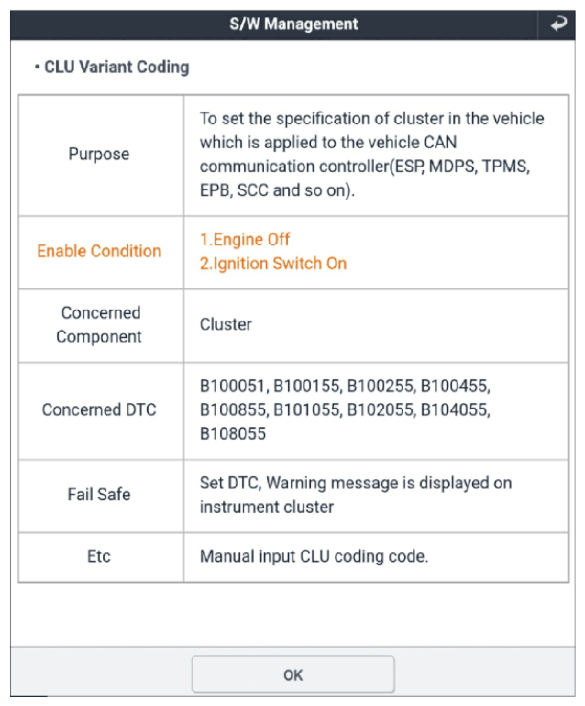

G12852980Courtesy of KIA MOTORS AMERICA, INC.

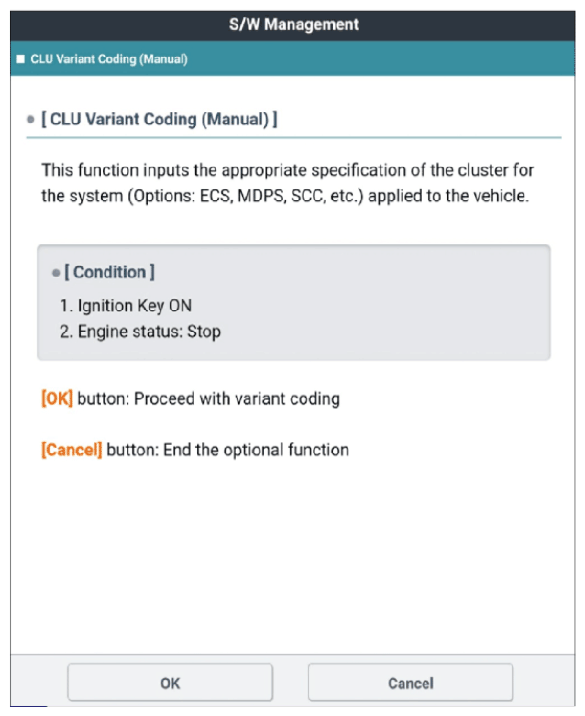

G12852981Courtesy of KIA MOTORS AMERICA, INC.

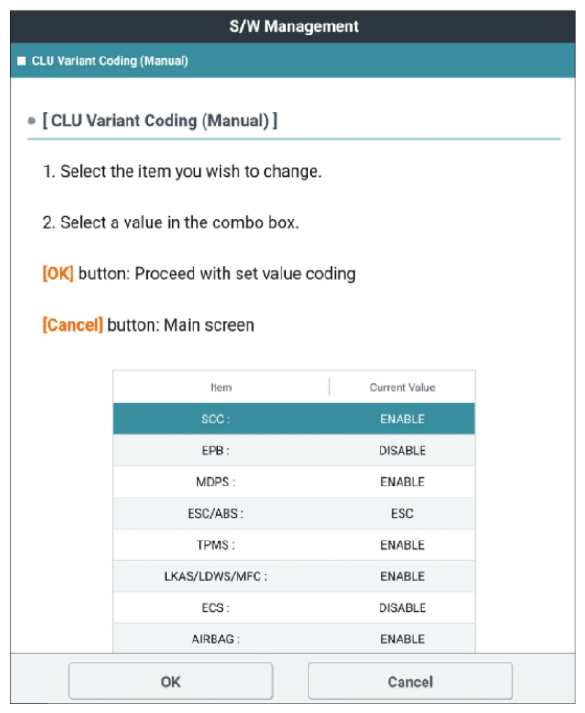

G12852982Courtesy of KIA MOTORS AMERICA, INC.

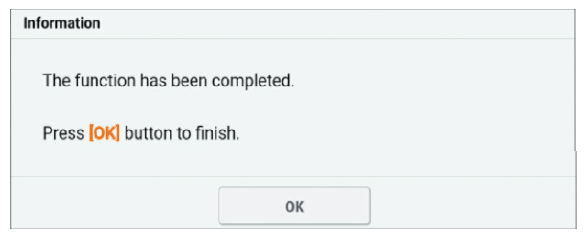

G12852983Courtesy of KIA MOTORS AMERICA, INC.
