DTC B1040-55: LKAS/LDWS Present Error - Coding Code Error
›
System Inspection
›
Vehicle S/W Management
Vehicle S/W Management
Inspection Condition
Inspection Procedure
Reference
Ignition "ON".
Connect KDS to Data Link Connector (DLC).
Perform "Vehicle S/W Management" of concerned component with KDS.

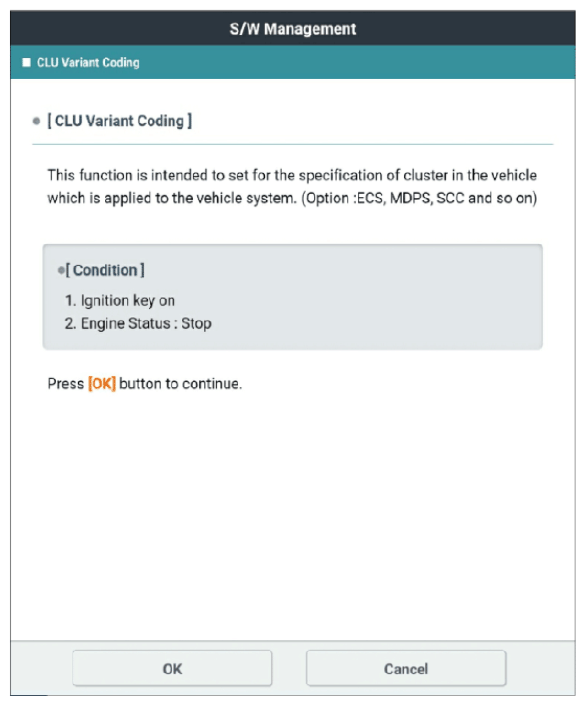

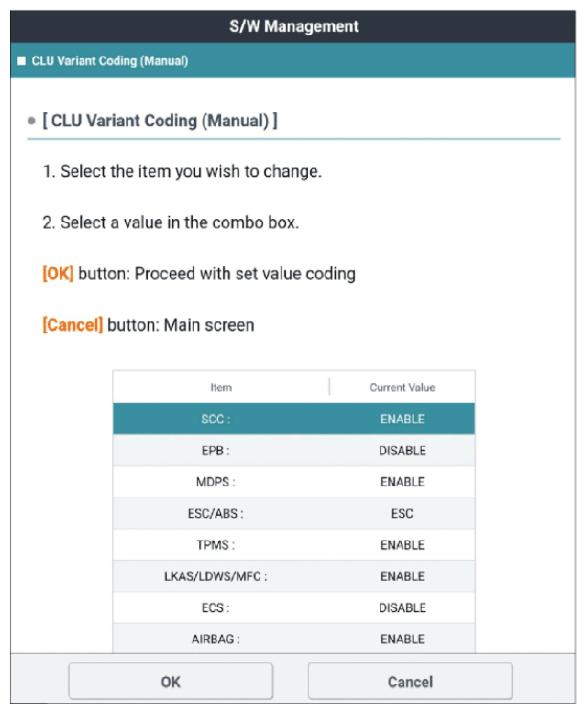

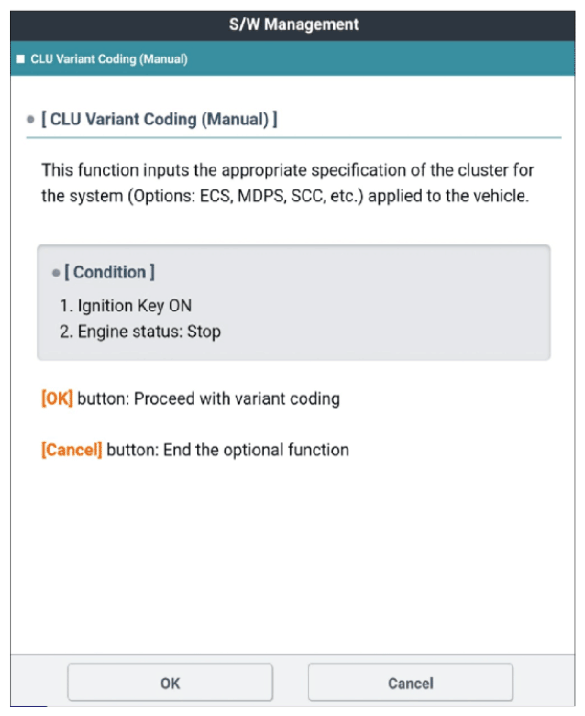

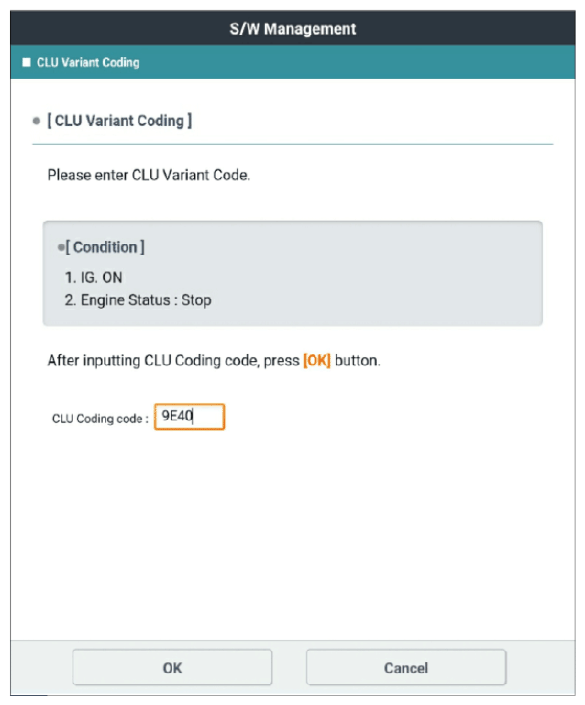

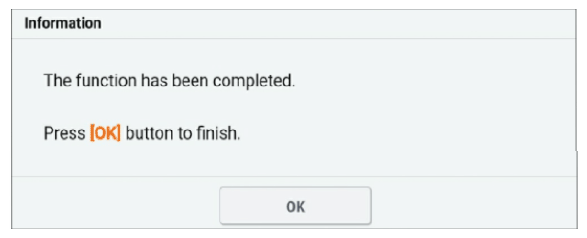

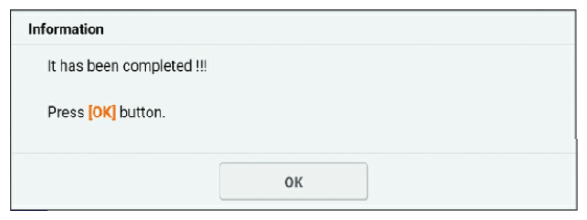

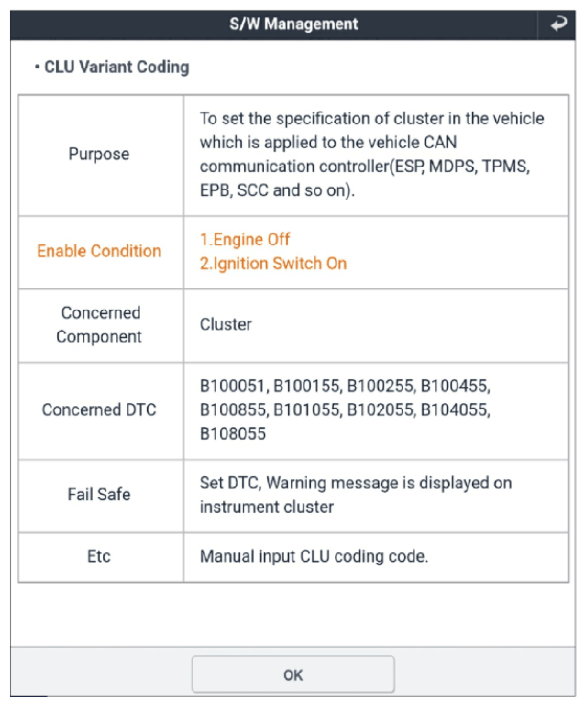

Figures below.
Courtesy of KIA MOTORS AMERICA, INC.
Courtesy of KIA MOTORS AMERICA, INC.
Courtesy of KIA MOTORS AMERICA, INC.
Courtesy of KIA MOTORS AMERICA, INC.
Courtesy of KIA MOTORS AMERICA, INC.
Courtesy of KIA MOTORS AMERICA, INC.
Courtesy of KIA MOTORS AMERICA, INC.
Courtesy of KIA MOTORS AMERICA, INC.
Courtesy of KIA MOTORS AMERICA, INC.
