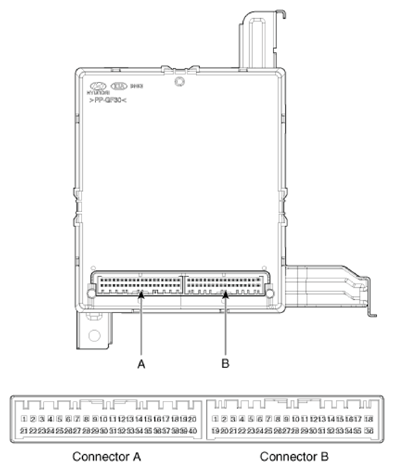

Connector And Terminal Function
[Non-Smart key]
| Pin | Connector A | Connector B |
|---|---|---|
| 1 | - | Front washer switch_input |
| 2 | - | - |
| 3 | - | Key solenoid_output |
| 4 | - | Key in switch_output |
| 5 | - | Key interlock switch_output |
| 6 | Rear center seat belt indicator_output | Wiper parking switch_input |
| 7 | Rear left seat belt indicator_output | Security indicator_output |
| 8 | Rear right seat belt indicator_output | Brake switch_input |
| 9 | Assist seat belt indicator_output | Haptic_output |
| 10 | Head lamp switch High_input | Front wiper volume switch_Input |
| 11 | Outside mirror unfolding_output | Keyhole illumination output |
| 12 | Outside mirror folding_output | - |
| 13 | - | Dedicated DRL |
| 14 | PDW alarm_output | PDW option_input |
| 15 | PDW-R power_output | B-CAN_Low |
| 16 | PDW-F power_output | B-CAN_High |
| 17 | PDW power_input | Power_ground |
| 18 | - | ECU_ground |
| 19 | - | - |
| 20 | - | - |
| 21 | - | - |
| 22 | KLINE_immobilizer | Start inhibitor relay_output |
| 23 | - | PDW switch indicator_output |
| 24 | - | Front wiper switch_input |
| 25 | Sunroof status_input | - |
| 26 | PDW switch_input | Multifunction switch ground_input |
| 27 | - | Wiper power relay_output |
| 28 | - | Auto light sensor ground_output |
| 29 | - | Auto light sensor signal_input |
| 30 | LIN1 (PDW) | Auto light sensor power_output |
| 31 | - | - |
| 32 | Light switch_input | Front wiper high relay_output |
| 33 | Fog lamp switch_input | Front wiper low relay_output |
| 34 | IGN 2_input | Front wiper low back up switch_input |
| 35 | IGN 1_input | P-CAN_Low |
| 36 | ACC_input | P-CAN_High |
| 37 | Power_battery (+) | |
| 38 | ECU_battery (+) | |
| 39 | Immobilizer antenna power_output | |
| 40 | Immobilizer antenna ground_output |
[Smart key]
| Pin | Connector A | Connector B | Connector C |
|---|---|---|---|
| 1 | Front washer switch_input | Driver outside handle switch_input | |
| 2 | Puddle pocket lamp_output | - | Assist outside handle switch_input |
| 3 | - | - | FOB key searching signal_output (to WPC) |
| 4 | - | - | - |
| 5 | External buzzer_output | - | RPM_input |
| 6 | Rear center seat belt indicator_output | Wiper parking switch_input | SSB illumination (+)_output |
| 7 | Rear left seat belt indicator_output | Security indicator_output | ACC relay_output |
| 8 | Rear right seat belt indicator_output | Brake switch_input | IGN 1 relay_output |
| 9 | Assist seat belt indicator_output | Haptic_output | IGN 2 relay_output |
| 10 | Head lamp switch High_input | Front wiper volume switch_Input | Start relay_output |
| 11 | Outside mirror unfolding_output | - | Driver outside handle switch_output |
| 12 | Outside mirror folding_output | - | Assist outside handle switch_output |
| 13 | - | Dedicated DRL | Interior antenna 1 (+)_output |
| 14 | PDW alarm_output | PDWoption_input | Interior antenna 2 (+)_output |
| 15 | PDW-R power_output | B-CAN_Low | Interior antenna 3 (+)_output |
| 16 | PDW-F power_output | B-CAN_High | Rear bumper antenna (+)_output |
| 17 | PDW power_input | Power_ground | - |
| 18 | ESCL Enable_output | ECU_ground | - |
| 19 | ESCL unlock switch_input | - | - |
| 20 | ESCL (-)_output | - | - |
| 21 | - | - | SSB switch 1_input |
| 22 | KLINE_immobilizer | - | SSB switch 2_input |
| 23 | - | PDW switch indicator_output | AT: 'P' position_input |
| MT: IGN lock switch_input (clutch) | |||
| 24 | - | Front wiper switch_input | ESCL_COM |
| 25 | Sunroof status_input | - | Wheel speed sensor_input |
| 26 | PDW switch_input | Multifunction switch ground_input | - |
| 27 | - | Wiper power relay_output | - |
| 28 | - | Auto light sensor ground_output | - |
| 29 | - | Auto light sensor signal_input | - |
| 30 | LIN1 (PDW) | Auto light sensor power_output | Start feedback_input |
| 31 | ESCL (+)_output | - | Driver outside handle switch antenna_output |
| 32 | Light switch_input | Front wiper high relay_output | Assist outside handle switch_output |
| 33 | Fog lamp switch_input | Front wiper low relay_output | Interior antenna 1 (-)_output |
| 34 | IGN 2_input | Front wiper low back up switch_input | Interior antenna 2 (-)_output |
| 35 | IGN 1_input | P-CAN_Low | Interior antenna 3 (-)_output |
| 36 | ACC_input | P-CAN_High | Rear bumper antenna (-)_output |
| 37 | Power_battery (+) | - | |
| 38 | ECU_battery (+) | ||
| 39 | Immobilizer antenna power_output | - | |
| 40 | Immobilizer antenna ground_output | - |
