Rear View Monitor (RVM)
›
Schematic Diagrams
›

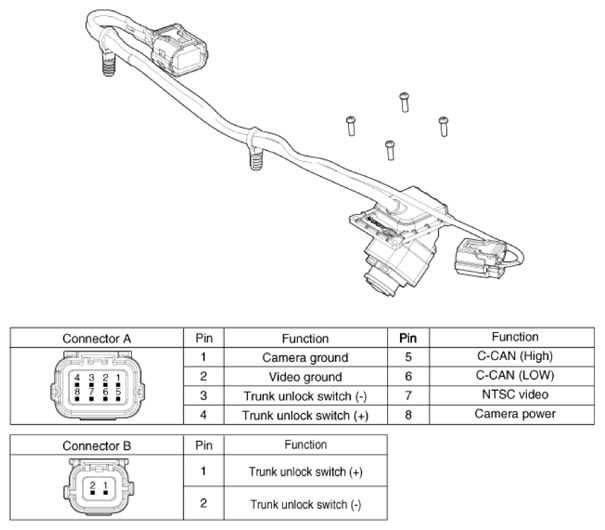

Connector And Terminal Function
Connector And Terminal Function
Courtesy of KIA MOTORS AMERICA, INC.
Courtesy of KIA MOTORS AMERICA, INC.
