Repair Procedures: Inspection

Disconnect the negative (-) battery terminal.
Remove the overhead console lamp.
(Refer to Lighting System - " OVERHEAD CONSOLE LAMP ")
Check the continuity of between terminals.

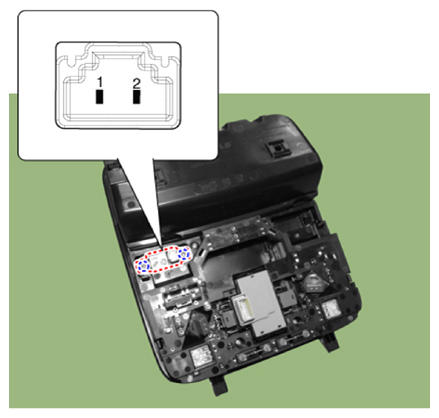

Fig 1: Hands Free Mic Connector Terminals
Courtesy of KIA MOTORS AMERICA, INC.

Fig 2: Checking Continuity Between Hands Free Mic Terminals
Courtesy of KIA MOTORS AMERICA, INC.
