Repair and Diagnosis
›
Accessories & Equipment
›
Entertainment Systems
›
Audio/Video/Navigation (AVN) System
›
Multimedia Jack
›
Schematic Diagrams
›
Connector And Terminal function
Connector And Terminal function

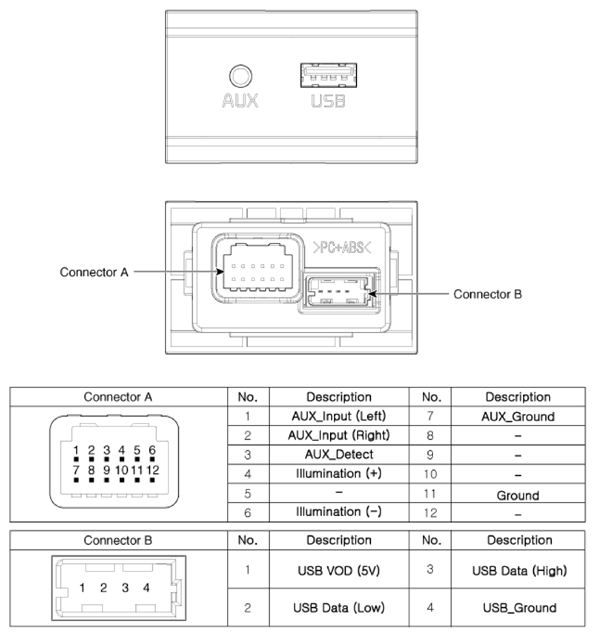

Fig 1: Multimedia Jack Connector And Terminal Function
