Repair Procedures: Removal

  1. Disconnect the negative (-) battery terminal.

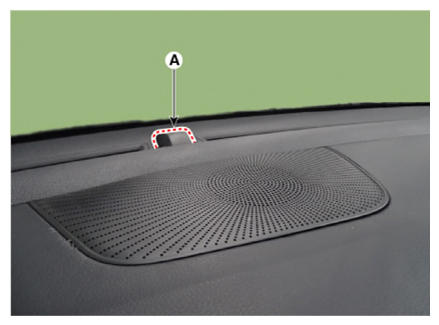

  2. Remove the auto light sensor (A) from the main crash pad.
    G12832055Courtesy of KIA MOTORS AMERICA, INC.

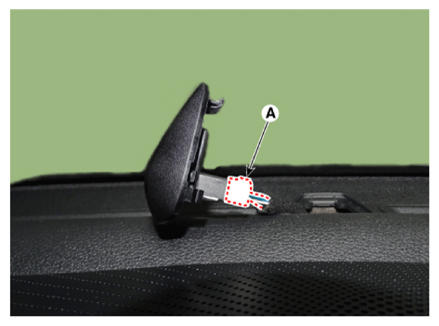

  3. Disconnect the connector (A) from the auto light sensor.
    G12832056Courtesy of KIA MOTORS AMERICA, INC.
