Interior Antenna 1

Take care not to bend or scratch the trim and panels.

1. Disconnect the negative battery terminal.
2. Remove the crash pad center lower panel.

   (Refer to Body - " CRASH PAD CENTER LOWER PANEL  ")

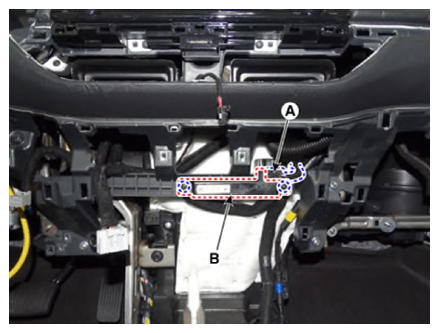

3. Remove the Interior antenna 1 (B) by loosening the screws after disconnecting the connector (A).

   Courtesy of KIA MOTORS AMERICA, INC.
