Interior Antenna 2

  1. Disconnect the negative battery terminal.
  2. Remove the floor console assembly.

    (Refer to Body - " FLOOR CONSOLE ASSEMBLY  ")

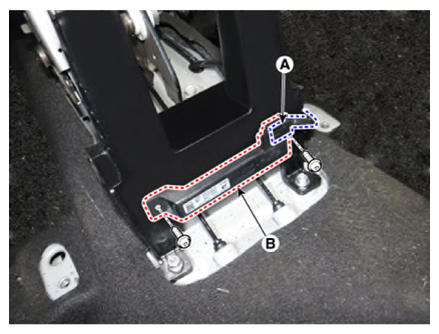

  3. Remove the Interior antenna 2 (B) by loosening the screws after disconnecting the connector (A).
    G12832788Courtesy of KIA MOTORS AMERICA, INC.
