Home › Kia › 2019 › Forte EX › Repair and Diagnosis › Body & Frame › Ignition Switch/Steering Lock › Button Engine Start System › Start/Stop Button › Repair Procedures › Removal

Repair Procedures: Removal

  1. Disconnect the negative (-) battery terminal.
  2. Remove the crash pad center lower panel.

    (Refer to Body - " CRASH PAD CENTER LOWER PANEL  ")

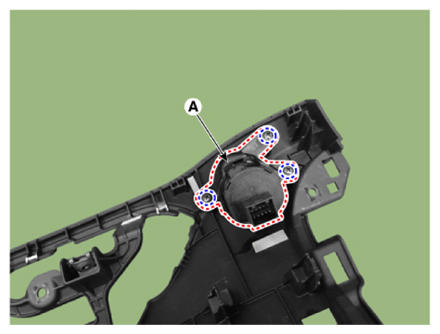

  3. Remove the button start switch (A) after loosening the screws.
    G12832317Courtesy of KIA MOTORS AMERICA, INC.
