Repair Procedures: Removal
- Disconnect the negative (-) battery terminal.
- Remove the crash pad lower panel.
(Refer to Body - " CRASH PAD LOWER PANEL ")
- Remove the steering column upper & lower shroud panel.
(Refer to Body - " STEERING COLUMN SHROUD PANEL ")

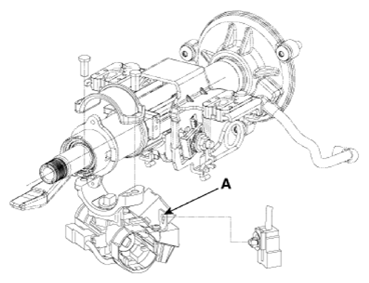

- Remove the ignition switch (A) by loosening the screws after disconnecting the connector.
