Component Inspection: Notes

Inspection Condition	Inspection Procedure	Reference

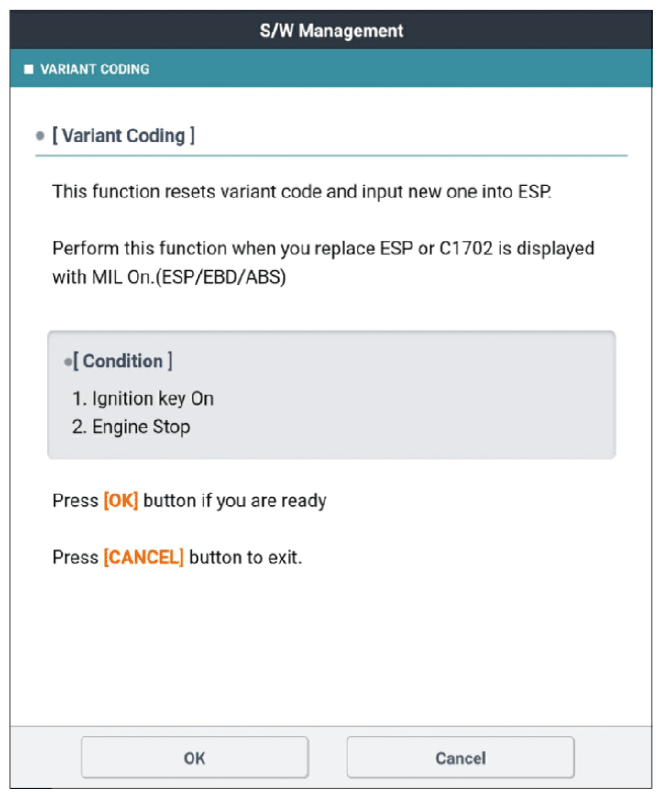

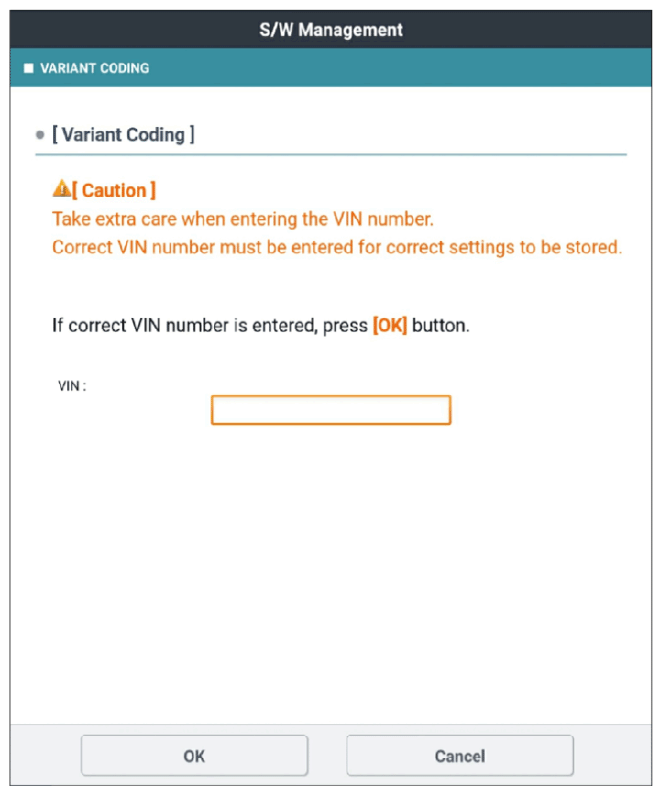

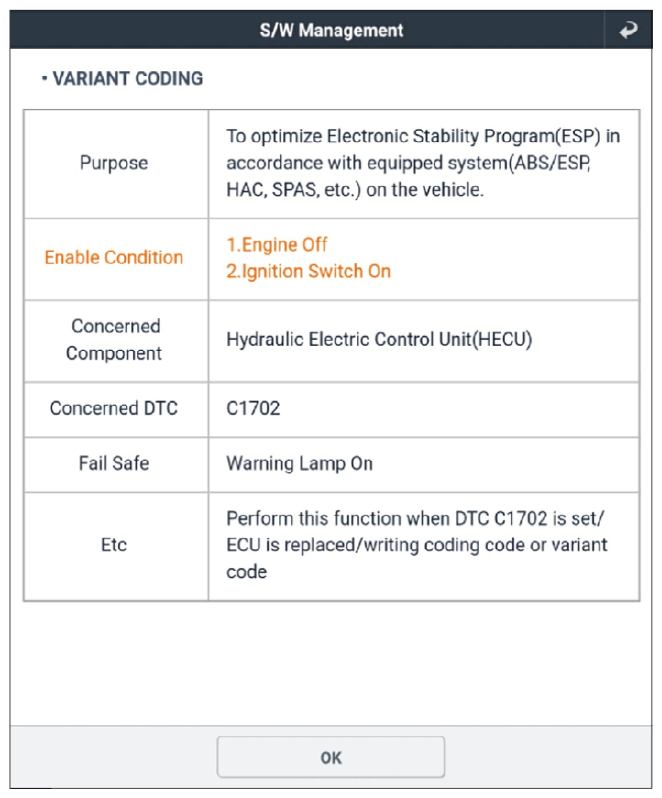

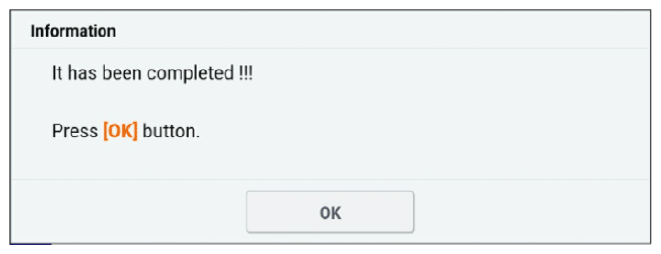

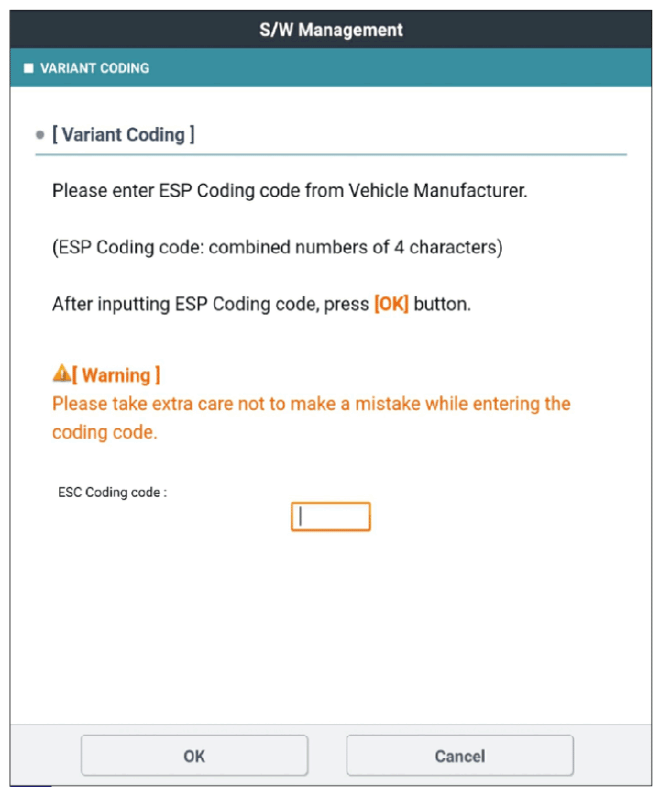

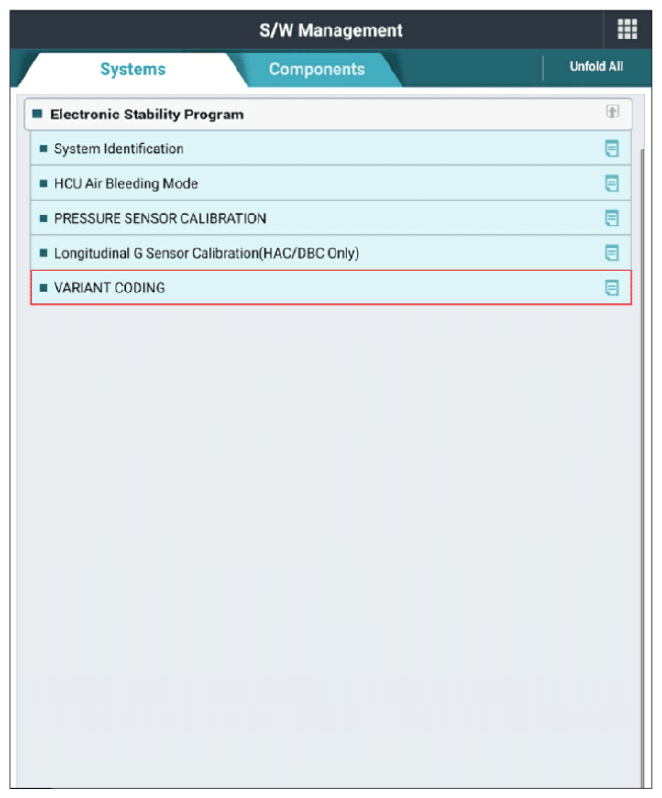

Variant Coding. Ignition "ON".	Connect KDS to Data Link Connector (DLC). Perform "Variant Coding" in "Vehicle S/W management" with KDS.	Fig.1 to 6

G12852692

Courtesy of KIA MOTORS AMERICA, INC.

G12852693

Courtesy of KIA MOTORS AMERICA, INC.

G12852694

Courtesy of KIA MOTORS AMERICA, INC.

G12852695

Courtesy of KIA MOTORS AMERICA, INC.

G12852696

Courtesy of KIA MOTORS AMERICA, INC.

G12852697

Courtesy of KIA MOTORS AMERICA, INC.

Good

Fault might be intermittent and caused either by poor contact in connectors or wiring harness, or it has been repaired and control module memory is not cleared yet. Thoroughly check terminal of battery, all connectors (and connections) for looseness, bending, corrosion, contamination, deterioration, and/or damage.
Repair or replace as necessary and then go to "VERIFICATION OF REPAIR " procedure.

No Good

Carefully re-do this troubleshooting guide steps.
If no problems were found with the circuits or connectors, replace the ESC module and go to "VERIFICATION OF REPAIR " procedure.
* In case of replacing ESC module, perform following "Vehicle S/W Management" procedures
