BJ Boot
›
Components & Components Location
›
Components
Components & Components Location: Components

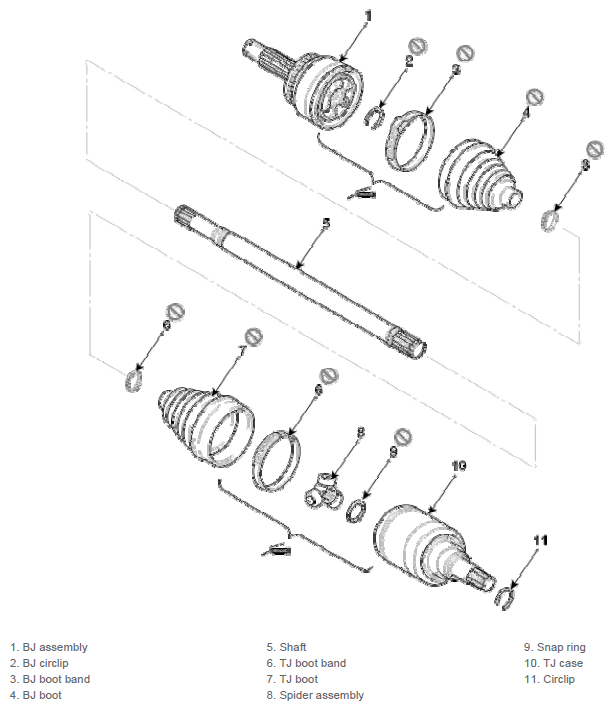

[RH]
Courtesy of KIA MOTORS AMERICA, INC.

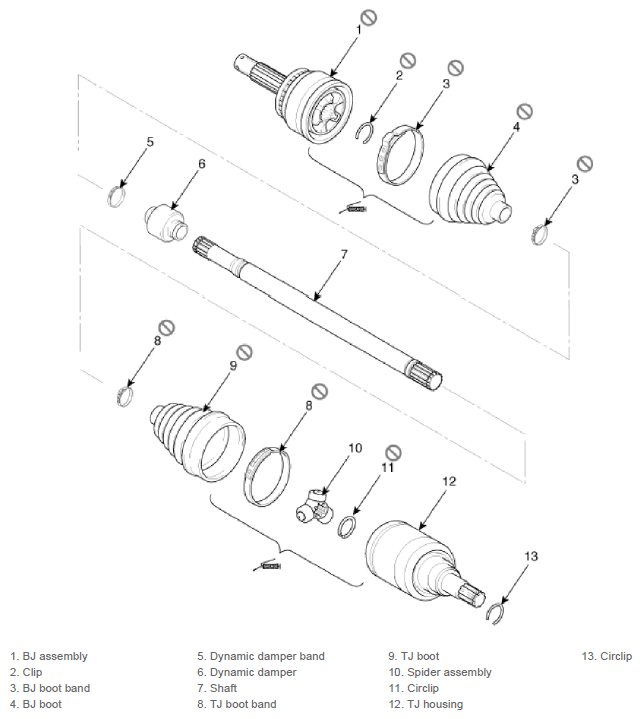

[LH]
Courtesy of KIA MOTORS AMERICA, INC.
Courtesy of KIA MOTORS AMERICA, INC.
