Components And Components Location: Components

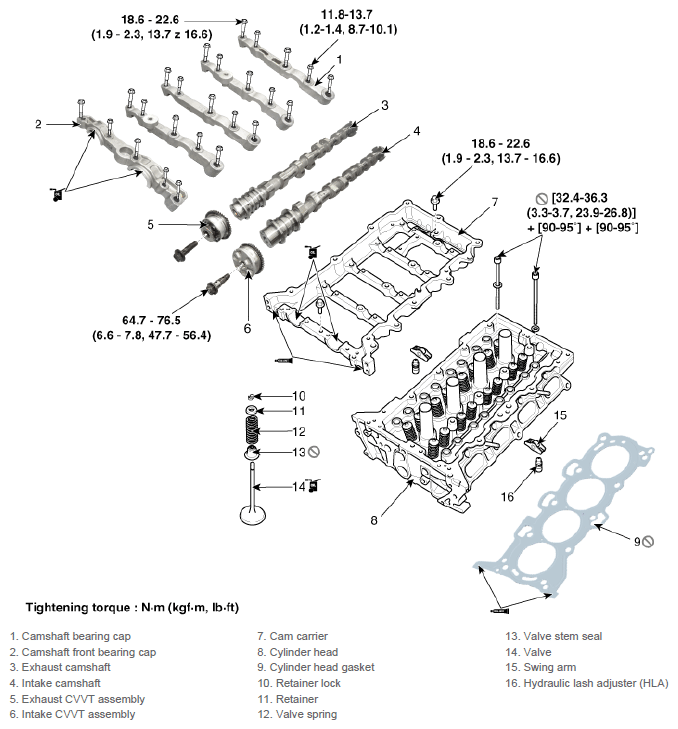

Fig 1: Cylinder Head Assembly Components Location With Torque Specification
G12826235Courtesy of KIA MOTORS AMERICA, INC.
