Home › Kia › 2019 › Forte EX › Repair and Diagnosis › Engine Mechanical › Mechanical › Cylinder Head Assembly › Cylinder Head › Components And Components Location › Components

Components And Components Location: Components

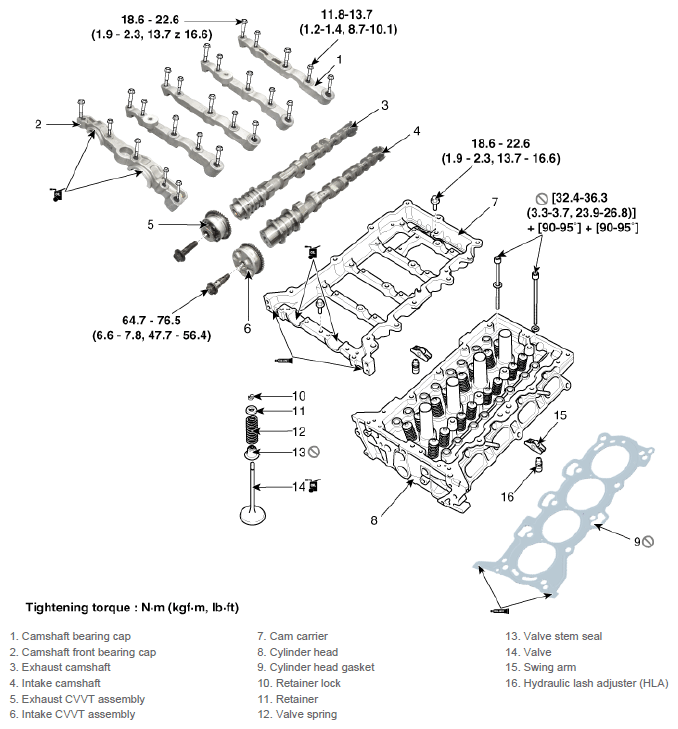

Fig 1: Cylinder Head Components Location With Torque Specification
G12826282Courtesy of KIA MOTORS AMERICA, INC.
