Timing Inspection
| Inspection Condition | (+) Probe | (-) Probe | Reference | ||
|---|---|---|---|---|---|
| Connector | Terminal | Connector | Terminal | ||
|

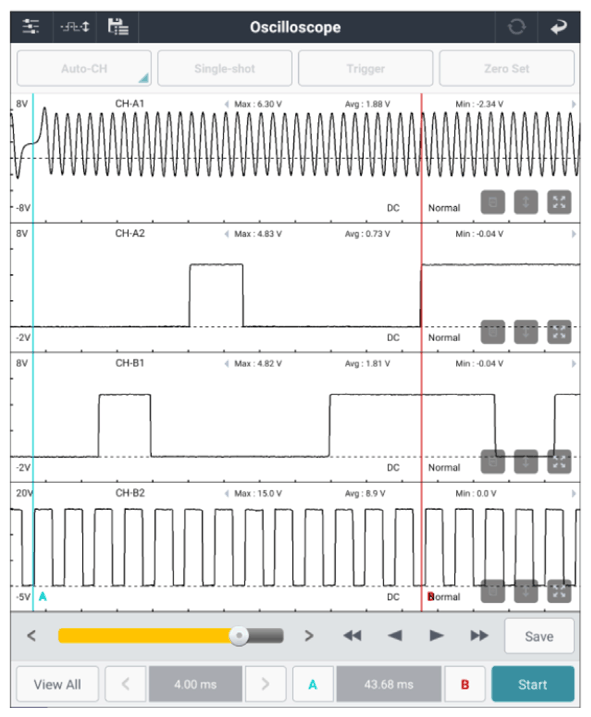

CKPS harness connector | 2 (signal) | CMPS IN harness connector | 3 (signal) | Figure |
| CMPS EX harness connector | 3 (signal) | OCV IN harness connector | 1 (control) | ||
Good
- Go to "IGNITION SYSTEM INSPECTION " procedure.
No Good
- Repair as necessary and go to "VERIFICATION OF REPAIR " procedure.
