Component Inspection

Inspection Condition	(+) Probe		(-) Probe		Reference
Inspection Condition	Connector	Terminal	Connector	Terminal	Reference

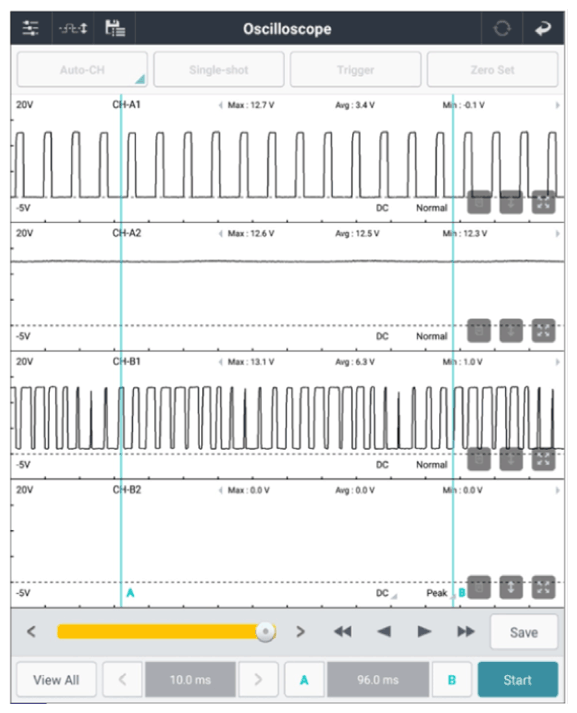

Ignition "ON", engine "ON".	Alternator harness connector	1 (COM)	Alternator harness connector	2 (L)	Figure
Ignition "ON", engine "ON".	Alternator harness connector	3 (FR)	Chassis ground	-	Figure

Courtesy of KIA MOTORS AMERICA, INC.

Good

No Good

Carefully re-do this troubleshooting guide steps.
If no problems were found with the circuits or connectors, replace the alternator and go to "VERIFICATION OF REPAIR " procedure.
