Schematic Diagrams
›
Circuit Diagram
Circuit Diagram

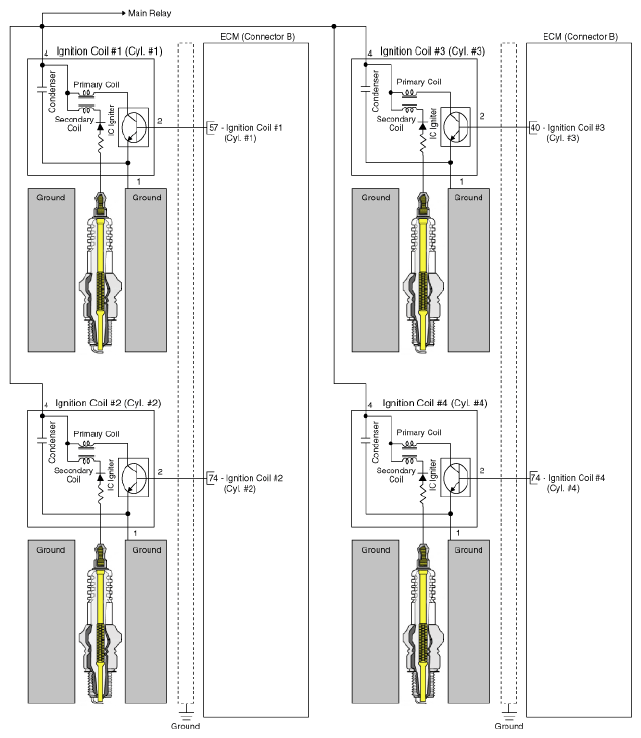

NON-Immobilizer
Courtesy of KIA MOTORS AMERICA, INC.

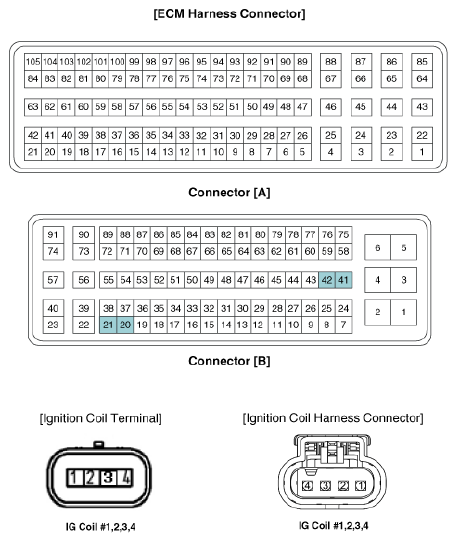

Immobilizer
Courtesy of KIA MOTORS AMERICA, INC.
Courtesy of KIA MOTORS AMERICA, INC.
Courtesy of KIA MOTORS AMERICA, INC.
