Repair Procedures: Adjustment
WARNING: This page is about a different car, the 2024 Kia Forte. However, it is still accessible from the selected car via links, so may be relevant.

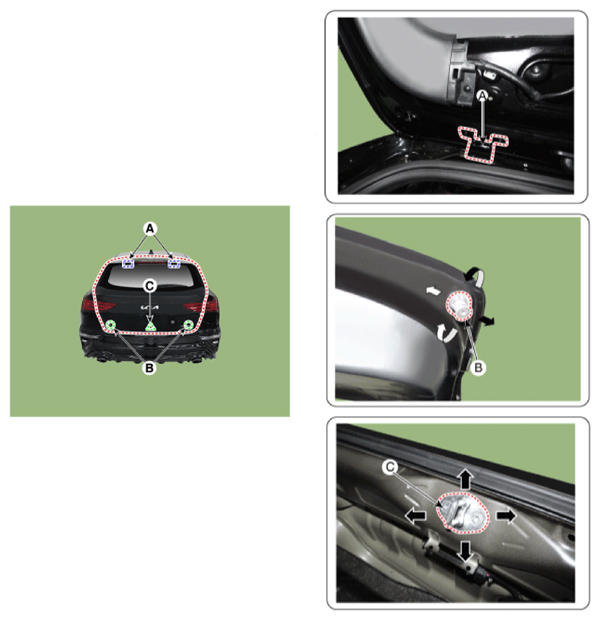

- Place the car on a flat surface and check whether the body and tailgate are well - aligned.
- After loosening the tailgate hinge (A) mounting bolt, adjust the tailgate by moving it up and down or from side to side.
- Adjust the gap between the tailgate and body by turning the tailgate overslam bumpers (B).
- After loosening the tailgate striker (C) mounting bolts, adjust the striker by moving it back and forth or from side to side and then tighten the mounting bolts.
- Make sure the tailgate opens or closes properly.
