Repair Procedures: Replacement
WARNING: This page is about a different car, the 2019 Kia Soul EV. However, it is still accessible from the selected car via links, so may be relevant.

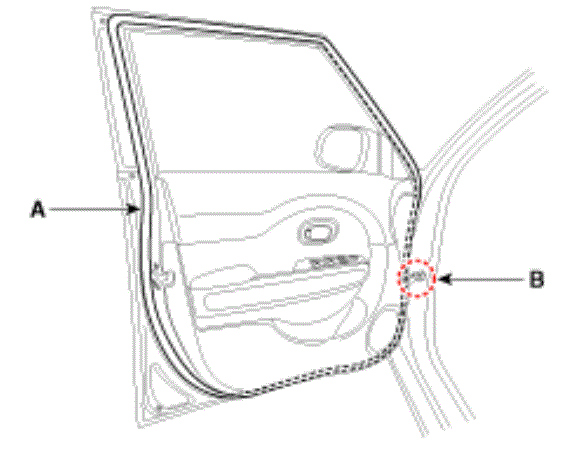

- Loosen the front door checker (B) mounting bolt.
Tightening torque:
16.7 ~ 21.6 N.m (1.7 ~ 2.2 kgf.m, 12.3 ~ 15.9 lb-ft)
- Detach the clips, and then remove the front door side weatherstrip (A).
 Courtesy of KIA MOTORS AMERICA, INC.
|
- Install in the reverse order of removal.
Information
- Replace any damaged clips.
