Repair Procedures: Replacement

WARNING: This page is about a different car, the 2019 Kia Soul EV. However, it is still accessible from the selected car via links, so may be relevant.

Disconnect the negative (-) battery terminal.

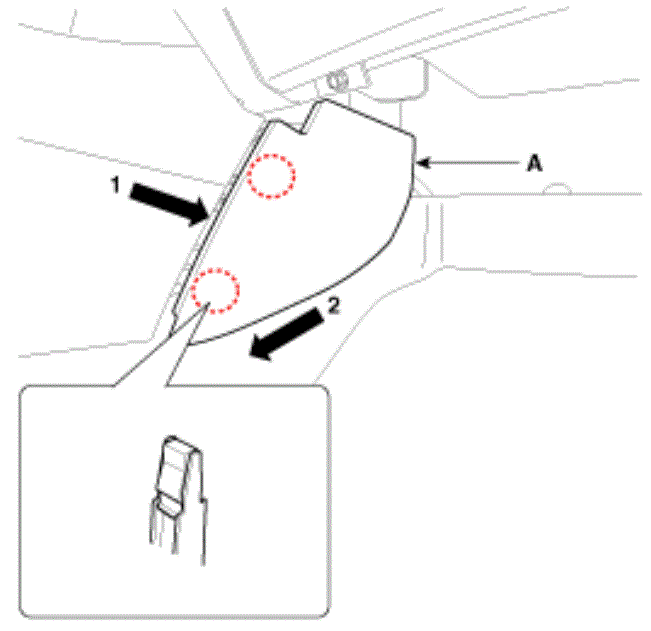

Remove the console side cover (A).
[RH]

Courtesy of KIA MOTORS AMERICA, INC.
Disconnect the evaporator temperature sensor connector (A).

Courtesy of KIA MOTORS AMERICA, INC.
Remove the evaporator temperature sensor (A) by pulling it out after rotating it 90° in a counterclockwise direction.

Courtesy of KIA MOTORS AMERICA, INC.
Install in the reverse order of removal.
