Diagnosis With KDS

WARNING: This page is about a different car, the 2019 Kia Soul EV. However, it is still accessible from the selected car via links, so may be relevant.

In the body electrical system, failure can be quickly diagnosed by using the vehicle diagnostic system (KDS).
The diagnostic system (KDS) provides the following information.
1. Self diagnosis: Checking failure and code number (DTC)
2. Current data: Checking the system input/output data state
3. Actuation test: Checking the system operation condition
4. Additional function: Controlling other features including system option setting and zero point adjustment

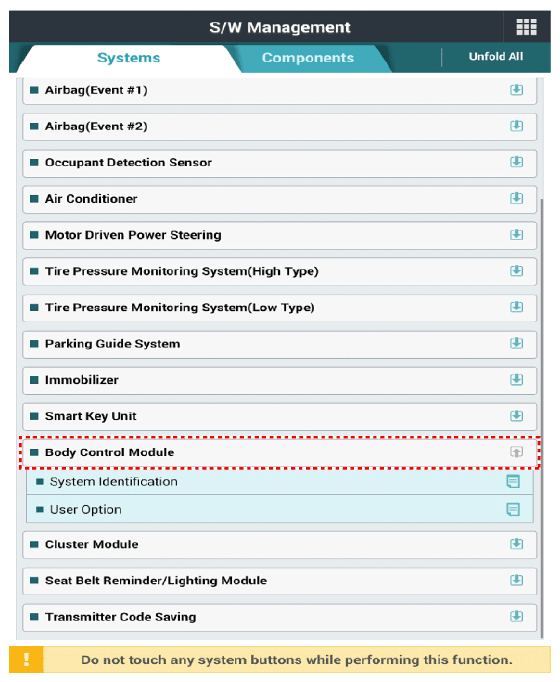

Select the "Car model" and the "Body Control Module (BCM)" to be checked in order to check the vehicle with the tester.

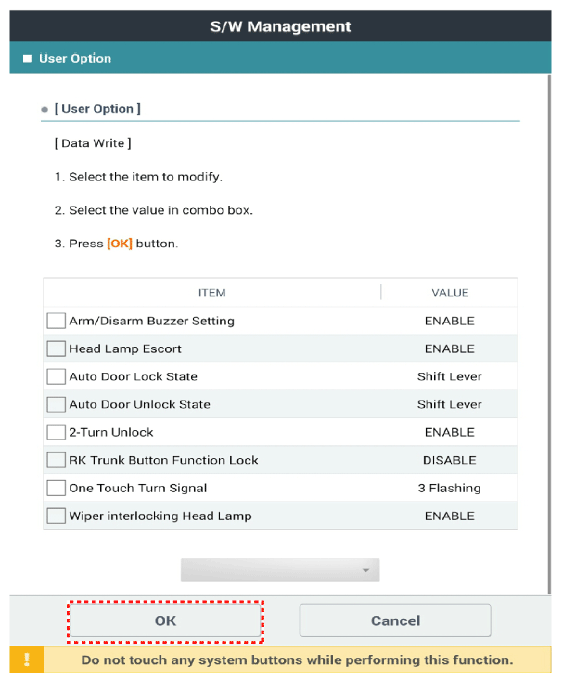

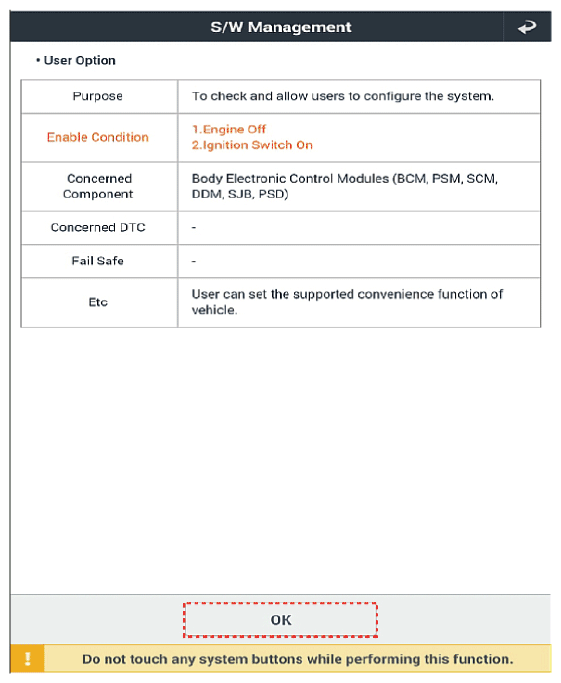

If you want to change user option, select "user option".
