Door Outside Handle

WARNING: This page is about a different car, the 2019 Kia Soul EV. However, it is still accessible from the selected car via links, so may be relevant.
  1. Disconnect the negative (-) battery terminal.
  2. Remove the front door module.

    (Refer to "FRONT DOOR MODULE ")

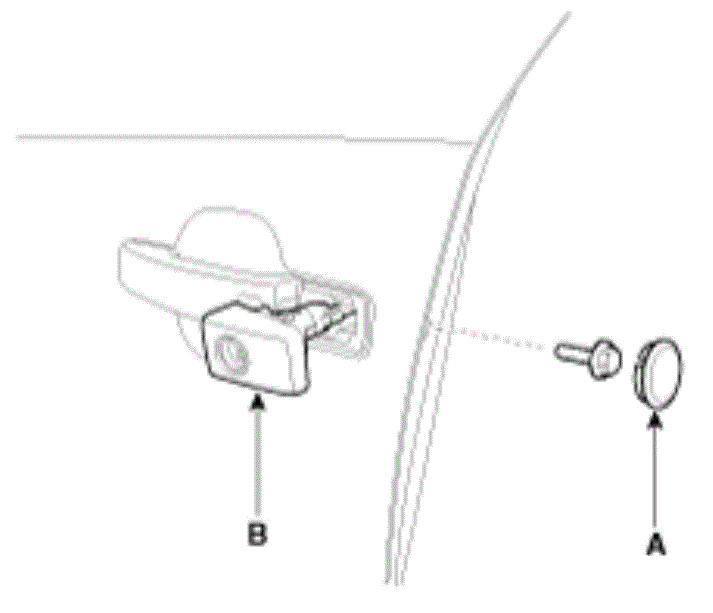

  3. Remove the hole plug (A).
  4. After loosening the mounting bolt, then remove the front door outside handle cover (B).
    G12822527Courtesy of KIA MOTORS AMERICA, INC.

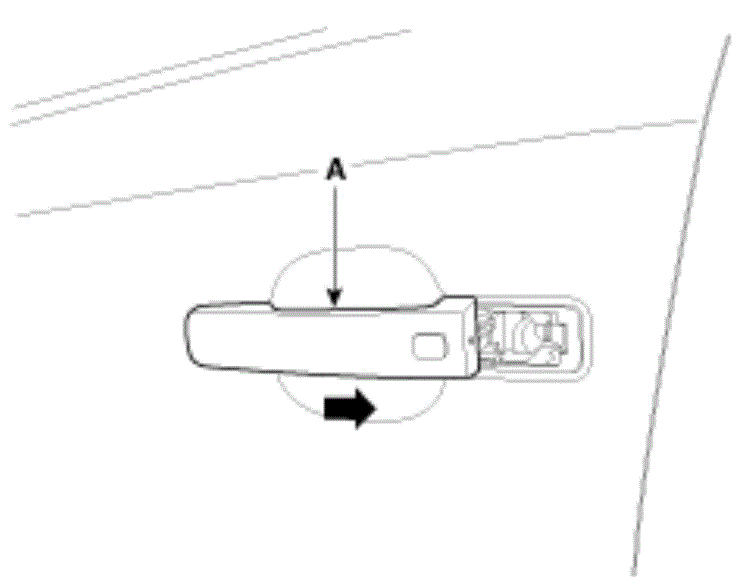

  5. Remove the front door outside handle (A) by sliding it rearward.
G12822528Courtesy of KIA MOTORS AMERICA, INC.
