Repair Procedures: Removal
WARNING: This page is about a different variant/trim than selected.
- Turn ignition switch OFF and disconnect the negative (-) battery cable.
- Remove the crash pad lower panel.
(Refer to Body - " CRASH PAD LOWER PANEL ")

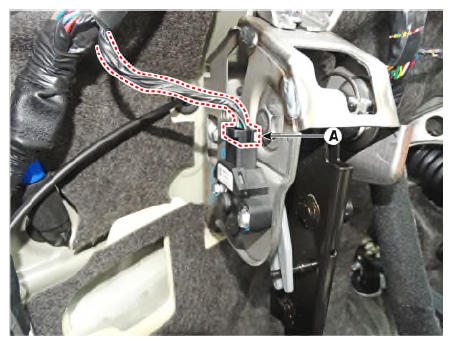

- Disconnect the ignition lock & clutch switch connector (A).

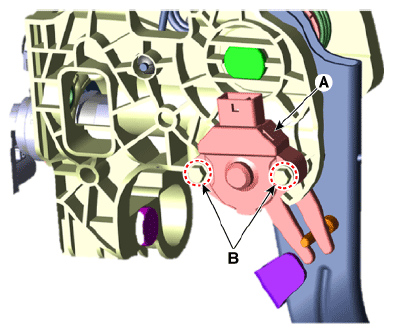

- Remove the ignition lock & clutch switch (A) after removing the bolts (B).
