Repair Procedures: Replacement

  1. Disconnect the negative (-) battery terminal.

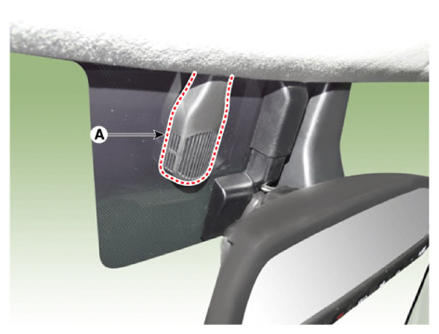

  2. Remove the auto defogging cover (A).
    G12832907Courtesy of KIA MOTORS AMERICA, INC.

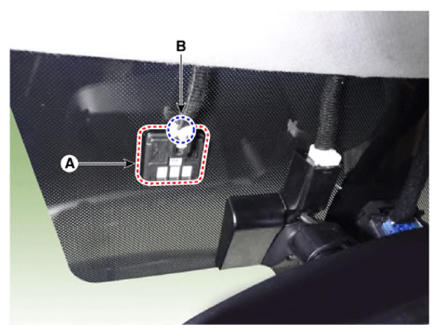

  3. Disconnect the connector (B) and then remove the auto defogging sensor (A).
    G12832908Courtesy of KIA MOTORS AMERICA, INC.
  4. To install, reverse the removal procedure.
