Repair Procedures: Replacement

CAUTION: When prying with a flat-tip screwdriver or use a prying trim tool, wrap it with protective tape, and apply protective tape around the related parts, to prevent damage.

Remove the heater and blower assembly.
(Refer to Heater - " HEATER UNIT ")

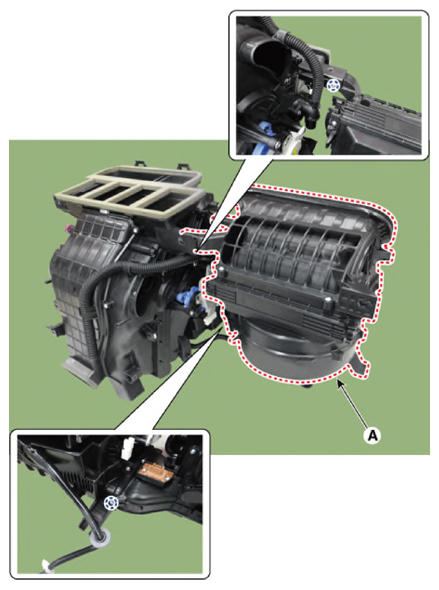

Separate the blower unit (A) from the heater unit after loosening the screws.

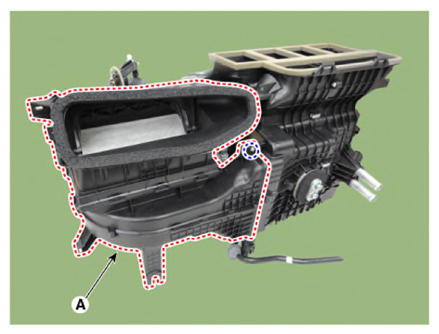

[Front]

Courtesy of KIA MOTORS AMERICA, INC.

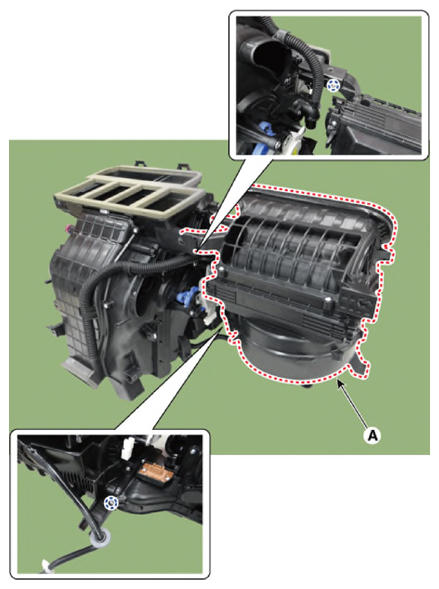

[Rear]

Courtesy of KIA MOTORS AMERICA, INC.

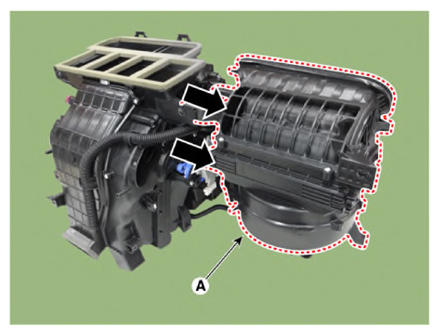

Courtesy of KIA MOTORS AMERICA, INC.
To install, reverse the removal procedure.
